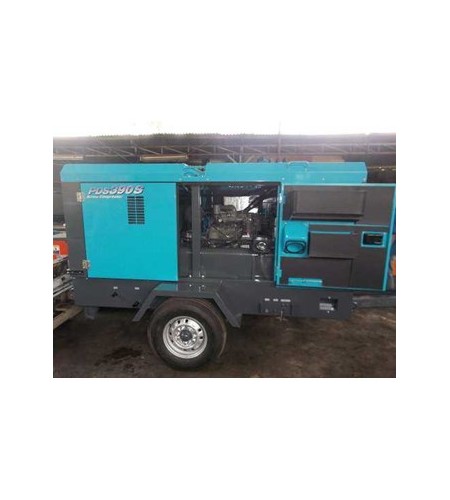

“Air Compressor AIRMAN PDS 390 S”
Perhatian!
Spesifikasi “Air Compressor AIRMAN PDS 390 S”
Jenis>: rotary twin screw, tunggal-tahap, minyak didinginkan
> Pengiriman udara bebas m3 / min: 11.0
> Dinilai tekanan operasi kg / cm2 (PSIG) (kPa): 7.1 (102) (700)
> Receiver tank kapasitas m3 (gal US): 0,98 (25,9)
> Outlet udara: 50A (2 ") x 1 pcs / 20A (3/4") x 4 pcs
> Mesin make / model: ISUZU DD-4BG 1T
> Jenis: 4 siklus air didinginkan langsung injeksi tipe W / Turbo Charger
> No.of silinder: 4
> Perpindahan total cc: 4,329
> Nilai output PS (kW) / rpm: 110 (80,9) / 2.400
> Liter kapasitas tangki bahan bakar (gal US): 180 (47,6)
> Lubrican kapasitas minyak liter (gal US): 13 (3.4)
> Dimensi & berat
panjang --overall mm (inch): 3, 060 (120,4)
overall lebar mm (inch): 1, 760 (69,2)
overall tinggi mm (inch): 1, 525 (60,0)
berat (kering) kg (lb): 1,825 (4,023)
berat (basah) kg (lb): 2,040 (4,997)
Ukuran ban: 6,50-14 8 PR X 2W
PT.DINAMIK KONSTRUKSI INDONESIA
