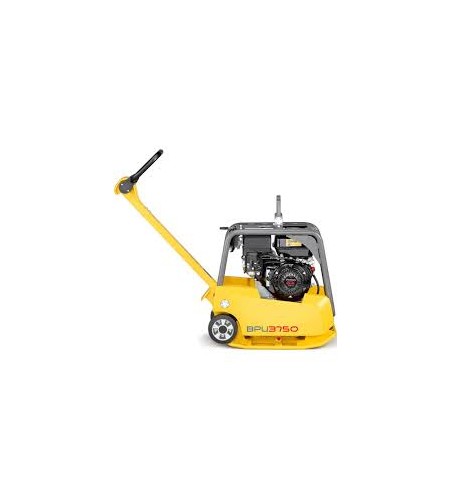

“Plate Compactor Wacker Neuson BPU 3750 ATS”

Technical Data BPU 3750A Reversible Vibratory Plate

• Operating weight 240 kg, 529.1 lbs.

• Baseplate (W x L) 500 x 703 mm, 19.7" x 27.7".

• Machine height 746 mm 29.4"

• Working height of handle (adjustable) 935 - 1303 mm. 36.8" - 51.3".

• Working width (without extension plates) 500 mm, 19.7"

• Base plate thickness 10 mm 0.4".

• Max. centrifugal force 37 kN 8317.9 lbf.

• Vibration frequency 90 Hz 90 vpm.

• Max. advance travel 25 m/min 82 ft/min.

• Max. surface capacity 750 m2/h, 8073 ft2/h.

• Air-cooled single cylinder, 4-stroke petrol Honda engine, Type GX270

• Displacement 270 cm3, 16.5 in 3

• Max. power output (DIN-ISO 3046*) 6 kW, 8 hp at 3600 1/min 3600 rpm

• Rated power output 2.7 kW 3.6 hp at 2800 1/min 2800 rpm

• Fuel consumption 1.1 l/h, 1.2 US qt/h

• Tank capacity 5.3 liters 5.6 US qt
