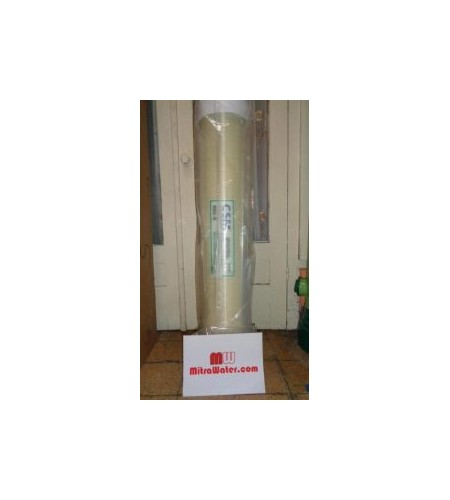

Jual Membran RO 10.000 GOD CSM RE 8040 BE

Jual membran RO 10.000 GPD CSM RE 8040 BE untuk kapasitas 38 m3 per hari. Hubungi: CV. Mitra Water 081234590404

Spesifikasi Membran RO 10.000 GPD CSM RE 8040 BE :

Permeate Flow rate :                 10,500 GPD (39.7 m3/day)

Stabilized Salt Rejection :        99.7 %

Effective Membrane Area :       400 ft2 (37.2 m2)

1. The stated performance is initial data taken after 30 minutes of operation based on the following conditions;

2,000 mg/L NaCl solution at 225 psig (1.5 MPa) applied pressure, 15 % recovery, 77 oF (25 oC) and pH 6.5~7.0.

2. Minimum salt rejection is 99.4%

3. Permeate Flow rate for individual elements may vary but will be no more than 10 % below the value shown.

4. Effective membrane area may vary within 3 %.

5. All elements are vacuum sealed in a polyethylene bag containing 1.0 % SBS (Sodium bisulfite) solution and packaged individually in a cardboard box.

Product Description

Membrane Type :                       Thin-film Composite

Membrane Material :                  PA (Polyamide)

Membrane Surface Charge :      Negative

Element Configuration :             Spiral-Wound, FRP wrapping

Product Dimensions

A =           40 inch (1,016 mm)

B =           8.0 inch (203 mm)

C =           1.12 inch (28 mm)

Operating Limits

z  Max. Pressure drop / Element           15 psi (0.1 MPa)

z  Max. Pressure drop / 240” vessel     60 psi (0.42 Mpa)

z  Max. Operating pressure                   600 psi (4.14 MPa)

z  Max. Feed flow rate                            66 gpm (15.0 m3/hr)

z  Min. Concentrate flow rate                16 gpm (3.6 m3/hr)

z  Max. Operating temperature             113 oF (45 oC)

z  Operating pH range                           3.0 ~ 10.0

z  CIPpH range                                      2.0 ~ 11.0

z  Max. Turbidity                                     1.0 NTU

z  Max. SDI (15 min)                               5.0
