LEMARI ASAM & WET SCRUBBER || FUME HOOD & WET SCRUBBER
Spesifikasi LEMARI ASAM & WET SCRUBBER || FUME HOOD & WET SCRUBBER
Type : JOM-08
Product : SLS-Tech (Assembly)
Fungsi : Untuk menghindari tenaga analysis dari paparan uap/bau dari bahan kimia selama proses pencampuran / reaksi
Spesifikasi:
a. Lemari Asam
▪ Housing : Playwood ±20mm with powder coat painted
▪ Table Cloth : Black Granite or Phenolic Resin
▪ Door : Sliding type with Clear Glass
▪ Lamp : TL 1 x 20 Watt
▪ Blower : Chemical Resistant, 1/2 PK, Power 220V
▪ Blower Pipe : PVC 6" Diameter
▪ Air Quality Meter : Temperature -5 °C to +50 °C
: Humidity 0.1 % RH to 99.9 % RH
: Carbon Dioxide 0 to 9,999 ppm (NDIR)
▪ Water Installation : Water Tap complete pipe PVC Wavin or Rucika
▪ Water Outlet : Chemical Resistant
▪ Nozzle : Polypropylene
▪ Sink : Polypropylene with bottle Trap
▪ Power Swift : ON/OFF for Blower
▪ Drawer : Use to keep the material
▪ Size : (P x L x T) :145 x 60 x 230 cm, Table Granite

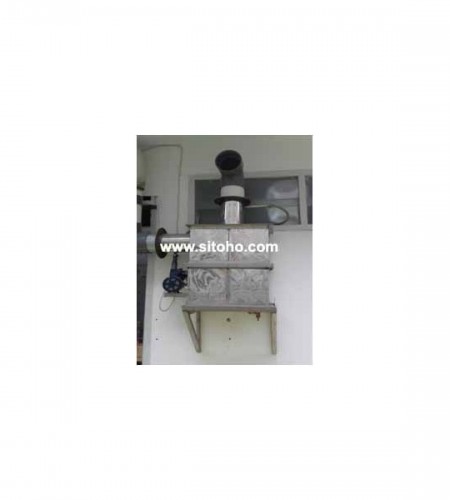

b. Wet Scrubber
▪ Body material : Stainless steel
▪ frame/support : Mild steel
▪ Circulation :Water line PPC and steel pipe
▪ Nozzle sprayer : 360 x 800 x 850 mm
▪ Support type : Wall bracket
▪ Pipe : dia 6" (inlet and outlet)
▪ Pump : 1/2 HP elektromotor 220 watt
▪ Daya : 125 watt
▪ Daya hisap : Max 9 meter
