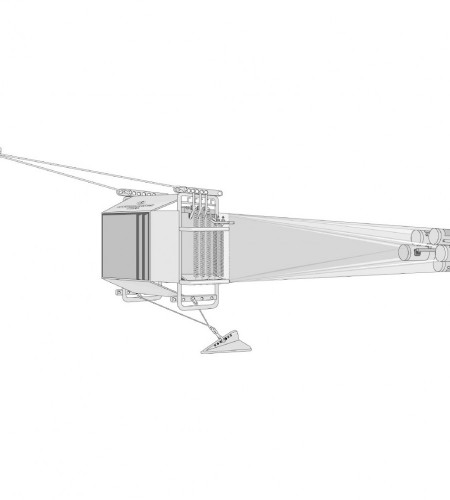

HYDROBIOS MultiNet Multiple Plankton Sampler
Gambar Produk
HYDROBIOS MultiNet Multiple Plankton Sampler
Update Terakhir
21-08-2017
Dilihat Sebanyak
74 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi HYDROBIOS MultiNet Multiple Plankton Sampler
| TECHNICAL DATA | ||||
|---|---|---|---|---|
| Underwater Unit | Type Mini No. 438 120 |
Type Midi No. 438 130 |
Type Maxi No. 438 140 |
Type Mammoth No. 438 180 |
| Dimensions (w x l x h) | 65 cm x 90 cm x 80 cm | 80 cm x 90 cm x 95 cm | 120 cm x 110 cm x 135 cm | 150 cm x 120 cm x 160 cm |
| Net Opening | 35.5 cm x 35.5 cm = 0.125 m² |
50 cm x 50 cm = 0.25 m² |
71 cm x 71 cm = 0.5 m² |
100 cm x 100 cm = 1 m² |
| Net Bags | 5 pcs., length: 160 cm | 5 pcs., length: 250 cm | 9 pcs., length: 365 cm | 9 pcs., length: 550 cm |
| Standard Mesh Size | 300 µm | 300 µm | 300 µm | 300 µm |
| Plastic Net Buckets | 5 pcs., 11 cm dia. | 5 pcs., 11 cm dia. | 9 pcs., 11 cm dia. | 9 pcs., 11 cm dia. |
| Soft Net Buckets | 5 pcs., 11 cm dia. | 5 pcs., 11 cm dia. | 9 pcs., 11 cm dia. | 9 pcs., 11 cm dia. |
| Overall length ready for operation (from bridle to net bucket | 470 cm | 560 cm | 800 cm | 1000 cm |
| Weights | ||||
| Net Frame | approx. 75 kg | approx. 100 kg | approx. 260 kg | approx. 390 kg |
| Stainless Steel Support | approx. 30 kg | approx. 50 kg | approx. 70 kg | approx. 100 kg |
| V-Fin Depth Depressor | approx. 22 kg | approx. 22 kg | approx. 70 kg | approx. 70 kg |
| Materials | ||||
| Net Frame | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Motor Unit and Battery Housing | Titanium | Titanium | Titanium | Titanium |
| Net Bags | MOnyl | MOnyl | MOnyl | MOnyl |
| Net Buckets | PVC/Canvas | PVC/Canvas | PVC/Canvas | PVC/Canvas |
| V-Fin Depth Depressor | Aluminium, lead-weighted | Aluminium, lead-weighted |
Aluminium, lead-weighted |
Aluminium, lead-weighted |
| Operational Depth | Standard 3000 metres | Standard 3000 metres | Standard 3000 metres | Standard 3000 metres |
| Pressure Sensor | Standard 3000.0 dbar ±0.1% f.s. (other ranges on request) |
Standard 3000.0 dbar ±0.1% f.s. (other ranges on request) |
Standard 3000.0 dbar ±0.1% f.s. (other ranges on request) |
Standard 3000.0 dbar ±0.1% f.s. (other ranges on request) |
| Offline-Set | Data memory: 16 MB | Data memory: 16 MB | Data memory: 16 MB | Data memory: 16 MB |
| Electronic Flow Meter | 2 pcs., 0.0 ... 9.9 m/s | 2 pcs., 0.0 ... 9.9 m/s | 2 pcs., 0.0 ... 9.9 m/s | 2 pcs., 0.0 ... 9.9 m/s |
| Connection Plug | SUBCONN IL 2 M | SUBCONN IL 2 M | SUBCONN IL 2 M | SUBCONN IL 2 M |
| Cable Counter Plug | SUBCONN IL 2 F | SUBCONN IL 2 F | SUBCONN IL 2 F | SUBCONN IL 2 F |
| Cable Connection | Electro-mechanical single- or multi-conductor cable, one pole can be in contact with sea water | |||
| Towing Cables | Type Mini No. 438 120 |
Type Midi No. 438 130 |
Type Maxi No. 438 140 |
Type Mammoth No. 438 180 |
| Breaking load for shallow water applications (up to 500 m) |
approx. 1500 kg | approx. 2000 kg | approx. 4000 kg | approx. 8000 kg |
| For deep sea applications (from 500 m up to 3000 m) | approx. 5000 kg | approx. 8000 kg | approx. 12000 kg | approx. 18000 kg |
| Max. Cable Resistance (go-and-return line) |
1000 Ohms | 1000 Ohms | 1000 Ohms | 1000 Ohms |
| Deck Command Unit: | Metal housing for use in 19" rack or as table housing, not for use on deck; push-button control for net changing; indication of net number, pressure, battery status, ... LCD-display with LED backlight; Interface for Personal Computer (RS 232) | |||
| Power Supply | ||||
| Underwater Unit | 3 Lithium Batteries DL 123 A/3V, sufficient for approx. 100 hours operation | |||
| Deck Command Unit | 85 - 260 VAC | 85 - 260 VAC | 85 - 260 VAC | 85 - 260 VAC |
| Towing Speed | Recommended for nets with 300 microns standard mesh size | |||
| Horizontal Collections | max. 4 knots | max. 4 knots | max. 4 knots | max. 4 knots |
| Vertical Collections | max. 1 m per sec. | max. 1 m per sec. | max. 1 m per sec. | max. 1 m per sec. |
