Specification of CBR TEST

ALAT UKUR TAHANAN TANAH CBR TEST SET

Keterangan :

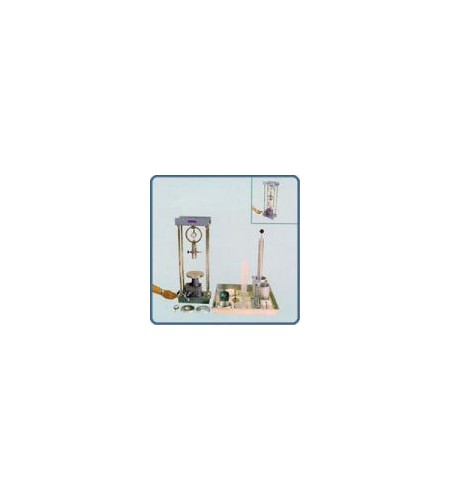

SO-360B LABORATORY CBR TEST SET
ASTM D-1883, AASHTO T-193

For determining the bearing ratio of soil.

SO-361B Mechanical Loading Machine
Steel frame, hand operated, two speeds, 10.000 lbs cap., 1.954 ” piston dia. 1 Set

SO-362 CBR Mold
Machined steel, 6 ” i.d, 7 ” weight, 2 ” height of collar 3 Pcs

SO-363 Spacer Dish
Machined steel, 5 15/ 16 ” dia., 2.416 ” height 1 Pc

SO-364 Cutting Edge
Machined steel, sharp edge 1 Pc

SO-365 Circular Surcharge Weight
Machined steel, 5 7/ 8 ” o.d., 2 1/ 8 ” i.d, 5 lbs weight 3 Pcs

SO-366 Slotted Surcharge Weight
Machined steel, 5 7/ 8 ” o.d., 2 1/ 8 ” slotted width, 5 lbs weight 3 Pcs

SO-354 Modified Proctor Hammer
Machined steel, galvanized, 2 ” dia., 18 ” drop height, 10 lbs weight 1 Pc

SO-369 Filter Paper
6 ” dia., 100 sheet/ box 1 Box

GE-101.6 Proving Ring
6.000 lbs capacity 1 Set

GE-131 Dial Indicator
Range 0.01 ” x 1 ” 1 Pc

GE-303 Square Pan
Galvanized steel, 65 x 65 x 7.5 cm 1 Pc

GE-390 Thin Box
Alumunium, 60 gr capacity 12 Pcs

GE-405A Graduated Cylinder
Plastic, 1000 ml capacity 1 Pc

GE-801 Scoop
Cast Alumunium 1 Pc

GE-871 Trowel
Pointed Type 1 Pc

GE-890 Straight Edge
300 mm length 1 Pc

Also required, but not part of this set:
SO-355 Extruder
SO-367 Swell Plate
SO-368 Swell Tripod
SO-450 Moisture Content Test Set
AG-218A Sieve No. 4
GE-136 Dial Indicator
GE-157 Heavy Duty Solution Balance
GE-323 Rectangular Pan

Dimension ( l x w x h) : 110 x 70 x 70 cm

Gross Weight : 200 kg
