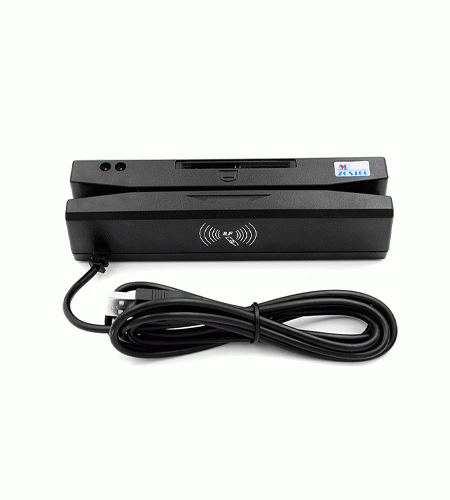

Spesifikasi Magnetic card encoder (reader_writer) Four in One CS160, magnetic,chip,rfid,emv
CS160 is a multi-functional reader to help you read magnetic stripe cards and read/write RFID cards IC card and PSAM card. Through the USB interface can realize the connection with PC machine and related equipment . Magnetic card support two-way charge, according to different user requirements, magnetic card 1, 2, 3 track information, the most common reader.Widely used in industry and commerce, telecommunications, taxation, banking, insurance, health care and a variety of charges, stored value, query management system.The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application and communication requirements.
Features:
Long Service Life Magnetic Head
100% Quality Confirmed 12 months Factory Warranty
Support magnetic /IC chips /13.56mhz RFID NFC /PSAM cards
Can read & write a variety of memory card and supports T = 0 and T = 1 communication protocol CPU card
Support the function of the SAM card operation
Use USB to communication with PC
Provide many development platform interface function and application example
Thin, light, beautiful, practical
POST, USB powered
Green LED flashes to indicate credit card data being output, after the completion of a three-track card full output Beeper
USB interface, truly plug and play, no need to install drivers
Read magnetic cards, IC card reader, proximity card function
Reading the full three-track magnetic card, support bi-directional swipe
Optional magnetic rail 1,2,3
Support Windows 7, Windows 8, Win2008, Windows 2003, Windows 2000, XP, Linux, etc
Providing a full range of dynamic library function, providing the perfect description of the development, points, examples, and a variety of development languages call example source code (including: c # 2003, c + + builder, Adelphi, Powerbuilder, VB.net2003, VB6.0 , java)
TECHNICAL SPECIFICATION:
Communications: USB2.0、USB-OTG
Maximum power consumption: 100 mW
Temperature: Commercial-grade:-20°∼ 60 °C
industrial-grade:-20°∼ 60 °C
Humidity: 90% non- condensing
Anti-static interference: 15KV
Magnetic interference resistance: 19Oersted
Vibration resistance: Amplitude 0.35mm,Frequency 10-55Hz,Three axis directions sweep vibration
Insulation Resistance: Hot and humid circumstances(40°，95%)Insulation resistance should not be less than 5MΩ
Dimensions : 160mm(L) ×45mm(W) × 45mm(H)
Weight: 180g
Magnetic card
Selectable tracks: yes
Read card: 1/2/3tracks
Swipe: Double direction
Swipe speed: 3 ~ 60 inches per second
Head life: Approx 500,000 passes
Parity and LRC checking Built-in, audible and LED good read and error indicator
Cards supported: ISO 7811,AMMVA,CADMV
RFID card
Operating Frequency: 13.56 MHz
Smart Card Interface: ISO14443-A, Mifare
Sensing Distance: About 0-5cm
Programmable sound: ON or OFF
Cards supported: ISO14443A,MifareOneS50,MifareOneS70,MF3 DESFIRE, Ultralight、 ISO14443B、SONY felica
PSAM card
Head life: Approx 200,000 passes
Communications: USB
Cards supported: ISO 7816-3
Operating system: Win7, Win 2008 ,Vista, Win 2003, Win 2000, XP, Linux
IC Card
Cards supported: AT24C01A/24C02/24C04/24C08/24C16/AT24C64，SLE4432/4442，SLE4418/4428，ISSI24C01A/16,ISO7816-(1-4) (T=1, T=0)
