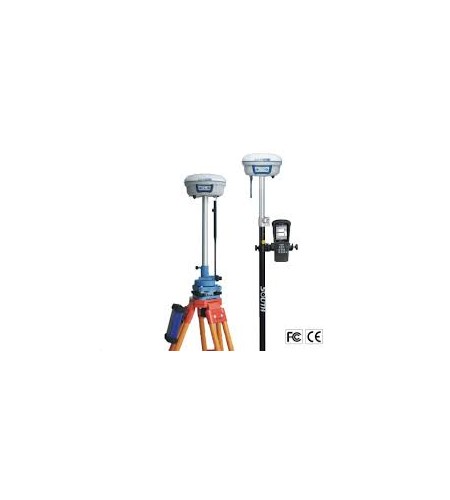

GPS South S82V Integrated RTK GNSS Surveying System
Gambar Produk
GPS South S82V Integrated RTK GNSS Surveying System
Pengiriman
1 Hari Setelah Pembayaran
Lokasi
Harga
Kontak Kami
Dilihat Sebanyak
43 kali
Update Terakhir
21-03-2017
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi GPS South S82V Integrated RTK GNSS Surveying System
Product description GPS South S82V Integrated RTK GNSS Surveying System
·Customized Radio Frequency Options
The integrated MDS series receiving radio modules include MDA (410-430MHz), MDB (430-450MHz), and MDC (450-470MHz) as alternatives, which allow the receiver to be compatible with many popular radio transmitters on the market.
·Built-in Transmitting Radio Module
0.5-2W, independent of external radio while working within short range, eg. 1-2km (in good condition).
0.5-2W, independent of external radio while working within short range, eg. 1-2km (in good condition).
·Huge Internal Memory
The 4G internal memory capacity of S82V allows mass storage of measured data for long time collection, which brings great convenience to your static work.
The 4G internal memory capacity of S82V allows mass storage of measured data for long time collection, which brings great convenience to your static work.

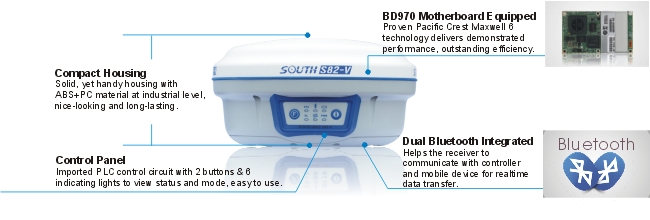

·Separated Module Packs
Advanced data link with both UHF receiving radio and GPRS/GSM modules built in, switchable for radio/network RTK modes. 2 modules are separately installed to reduce interference, yet still a very small receiver.
| Specification | |
| GPS Signal | L1、C/A code、carrier phase smoothing(Patented COAST™ propietary technology,when differential signals outage) |
| Channel | 12 channels, parallel tracking(11 channels when tracking SBAS) |
| Differential Source | SBAS(WAAS,EGNOS,MSAS) |
| Horizontal Accuracy | DGPS≤1m Single receiver <2.5m |
| Communication | RS-232 or bluetooth |
| Output pulse | 1pps |
| Baud Rate | 9600bps |
| Output data format | NMEA0183 |
| Extenal power | 9~36VDC |
| Power consumption | <1.2W@12VDC |
| Weight | 0.6kg(Built-in battery included) |
