With combi-receiver FR 10.
Detect rotating beams and line laser with one device.
With the ultimate FL 1000 HP even difficult measuring tasks become a mere child’s play. Two vertical laser planes at 90° to each other formed through clearly visible laser lines – and additionally one 360° horizontal laser line projected by the rotation function.
FL 1000 HP the ultimate for interior works! Even for the most complicated and specialized applications. The whole laser plane can, for example, be tilted manually if the object to be measured does not stand level – such as in
the interior construction of ships

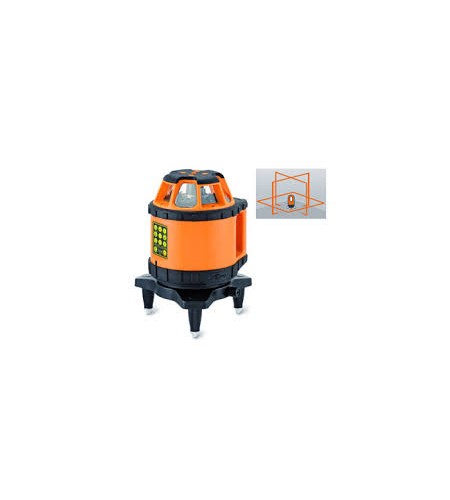

Geo Fennel FL1000 HP Laser is an Electronic Self-Leveling Rotating Laser. Visible horizontal rotating laser beam. Four vertical laser lines at 90° to each other. Can be used with remote control.
OUTFIT INCLUDES:
• FL1000 Laser
• Combi-receiver
• Rechargeable batteries
• Power supply
• Magnetic target
• Laser glasses
• Remote control
• Hard case
FEATURES AND BENEFITS:
• Electronic self-leveling
• Horizontal visible rotating laser beam
• Vertical 4 laser lines at 90° to each other
• Laser-cross to the ceiling
• Plumb down beam
• Tilt-function,slope Setting
• Combi-Receiver for rotating and line laser
• Remote control
• Adjustable 360° circle
• Tangent screw
• Automatic shut-off/audible alarm when out of level
• Integrated floor tripod
• 5/8“-connection for builders’ tripod
TECHNICAL DATA:
• Self-leveling range ± 5°
• Accuracy ± 1mm/10m
• Gradual slope setting X+Y Axis ± 5°
• TILT-Alarming function yes
• Working range without receiver Ø 40m*
• Working range with receiver Ø 200m*
• Scanning Ø 30m*
• Scanning range 10/30/60°
• Working range without receiver Ø 20m
• Working range with receiver Ø 80m
• Rotating speed rpm. 200,500
• Power supply NiMH/Alkaline
• Charger = power supply yes
• Laser diode / laser class 635 nm/3R
• Temperature range -10 °C – 40 °C
• Dust/Waterprotection IP 54 ~
*depending on room illumination
