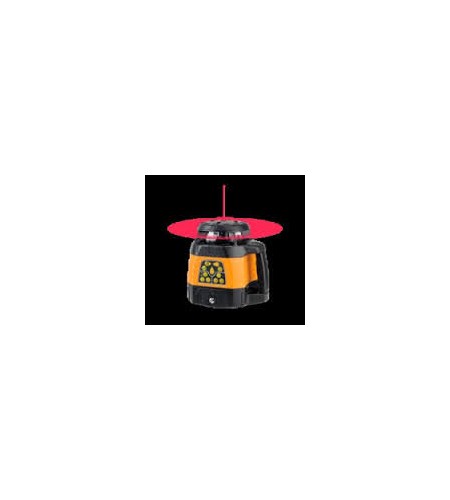

Rotating Laser Geo Fennel FL240HV Laser Level
The Geo Fennel FL240HV Rotating Laser is easy to use. Fully automatic self-levelling in horizontal and vertical. Designed for the interior professional with a dust and water protection making it also suitable for outdoor use
OUTFIT INCLUDES:
• FR45 Receiver with Clamp
• Remote Control
• NiMh Rechargeable Batteries
• Intelligent Charger
• Battery Case for Alkaline Batteries
• Adjustable Wall and Ceiling Mount
• Laser Glasses
• Magnetic Target
• Carrying Case
FEATURES AND BENEFITS:
• 2 rotating speeds
• Variable scanning mode
• Laser point mode
• Slope setting up to ± 5° (± 9%) in X and Y axis
• Permanent 90° plumb beam
• TILT function
• Remote control screen (on / off)
• Closed top cover housing offers excellent protection against dust and water
TECHNICAL DATA
• Self-levelling range: 5°
• Accuracy horizontal: ± 1 mm / 10 m
• Accuracy vertical: ± 1,5 mm / 10 m
• Working range with receiver Ø: 700 m
• Scanning w/o receiver: 60 m*
• Rotating w/o receiver Ø: 60 m*
• Scanning modes: 2 stage
• Slope setting in X and Y axis: ± 5° (± 9 %)
• Rotating speed rpm: 200, 500
• Operating time / Power supply: 24 h (NiMH) / 40 h (Alkaline)
• Temperature range: -10 °C – +45 °C
• Laser diode / Laser class: 3R
• Dust / water protection: IP 54
• Weight (instrument only): 1,95kg
