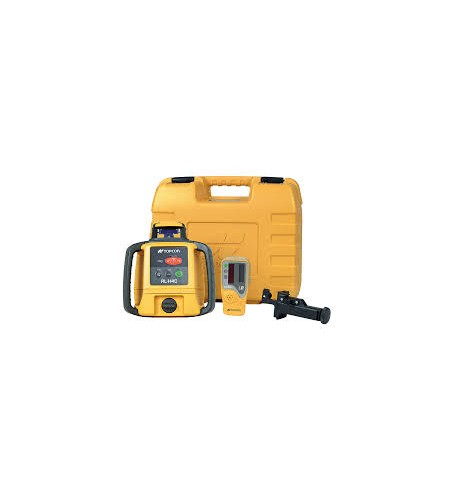

Topcon′s NEW RL-H4C auto-leveling laser combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arch seconds meaning whether you′re checking grade or setting batter boards you′re going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600ft. (800m) diameter working radius making it a great reference for machine mounted receivers. All of these features plus optional dry, rechargeable battery operation makes the RL-H4C more than twice the laser offered by anyone else.
Features
- Wide Working Range for All Type of Projects
- High Accuracy ±10″ (±1.5mm@30m, ±1/16in.@100ft.)
- Easy Operation
- Slope Matching Capability
- 3 Power Sources
- 100h/60h Long Battery Life*
- Large Dual Handles
- IP66 Dust/Water Protection
- LS-80L Long-range Sensor
- Stackable Carrying Case
Specification
| Accuracy | Horizontal ±10″ |
| Self-leveling Range | Horizontal ±5° |
| Working Area (diameter) | 2,600 ft,.800ｍ |
| Rotation Speed (RPM） | 600 rpm |
| Light Source | Visible Laser |
| Laser Power | 2.4mW |
| Laser Class | Laser safety CDRH(FDA) IIIa JIS/IEC 3R |
| Water proof/Dust-resistant | IP66 |
| Operating Time | 4D-CELL Alkaline manganese dry battery : 100HourNi-MH battery pack BT-67Q : 60Hour |
| Operating Temperature | -4°F ~ 122°F (-20°C ~ +50°C) |
| Size | 177(L) x 195.6(W) x 216.5(H)mm |
