Description :
The Laser Atlanta Advantage S Range Finder is a great long range laser measuring tool that can be fully operated by a single person or it can be used with a reflector to reach longer ranges. The Advantage S rangefinder helps surveyors take measurements of distances, missing lines, angles and even horizontal distances and heights and displays all results in meters or feet.
The Laser Atlanta Advantage S Rangefinder can measure up to 30,000 ft using a reflecting prism or up to 2,000 ft for straight measurements with an accuracy up to ½ a foot. This surveying tool features a head-up LED display with aiming sights and a rear LCD screen with a keypad to display all the results. You can gather and transfer all your measurements through the serial port RS232.
The Advantage S Laser Rangefinder comes with a built-in compass and inclinometer. The inclinometer has a 50 degrees range from the level with an accuracy of +/-0.4 degrees. Using some of this rangefinder internal functions you will be able to measure areas, distances between objects, remote vertical and horizontal distances, height of towers or buildings and even lengths and diameters.
The Advantage S Laser Rangefinder makes mapping and field surveying very easy when used with compatible GPS systems. This feature can be operated by just a single person to generate data for field surveying. This range finder is a great tool for land surveyors and engineers.
The Advantage S rangefinder weights only 3.9 pounds and comes in green. It’s water and dust resistant and uses a rechargeable battery handle that lasts for 4 to 6 hours of continuous use.
The Laser Atlanta Advantage S laser rangefinder comes with a 1 year warranty
Features:
- Up to 0.5 foot distance accuracy
- Up to 0.4 degrees angle accuracy
- Feet and meters
- Degrees
- Head-up LED display
- Keypad with LCD display
- Invisible laser
- 2,000 ft distance measuring range
- 30,000 ft distance measuring range to prism
- Compass and inclinometer
- Compatible with GPS systems
- Comes in green
- Measures distance, horizontal distance and angles
- 2-shot height and missing line
- Power: battery handles
- Data transfer via serial port RS232
- Tripod adaptable
- Portable
- Heavy duty design
- Durable carrying case
- Water and dust resistant
- Weights 3.9 pounds
Specifications:
- Dimensions: 3.8w x 7.3h x 6.4d in. (9.6w x 18.5h x 16.2d cm)
- Weight: 3.9 pounds with battery handle (1.77kg)
- Operating temperature: -22F to 140F (-30C to 60C)
- Storage temperature: -40F to 176F (-40C to 80C)
- Humidity: 90% non-condensing
- Environmental: Water and dust resistant
- Head-up display: LED aiming sights and 1 line x 4 character readout
- Rear panel display: 4 line x 20 character LCD – backlit
- Keyboard: Membrane keypad
- Data transfer: RS-232 serial port / Optional memory port for SD & USB
- Power source: Rechargeable battery handles. (Nickel Metal Hydride)
- Recharge time: Standard 8 – 10 hours
- Measurement time: 0.33 seconds minimum
- Range: 2,000 ft. (600m) passive / 30,000 ft. (9,100m) to prism
- Range accuracy: +/- 6in. (15cm) / 3 sigma (or 99.73%)
- Resolution inclinometer: 0.1 ft. (1cm)
- Inclinometer type: Tri-axis digital
- Inclinometer range: +/- 50 degrees from level
- Inclinometer accuracy: +/- 0.4 degrees
- Inclinometer resolution: 0.1 degrees
- Inclinometer repeatability: +/- 0.3 degrees
- Compass type: Triaxial magnetometer
- Compass range: 0.0 degrees to 359.9 degrees
- Compass accuracy: +/- 1 degrees RMS when level
- Compass resolution: 0.1 degrees
- Compass repeatability: +/- 0.3 degrees
What’s in the Box:

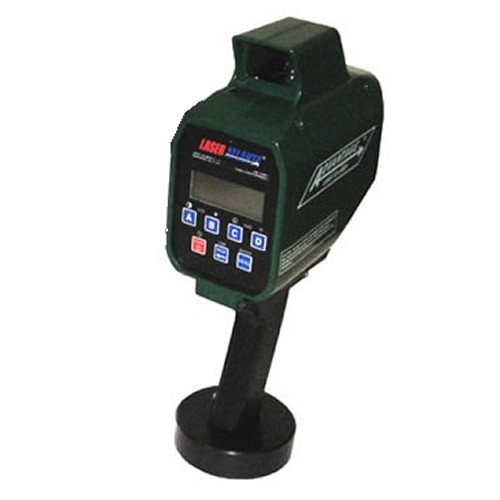

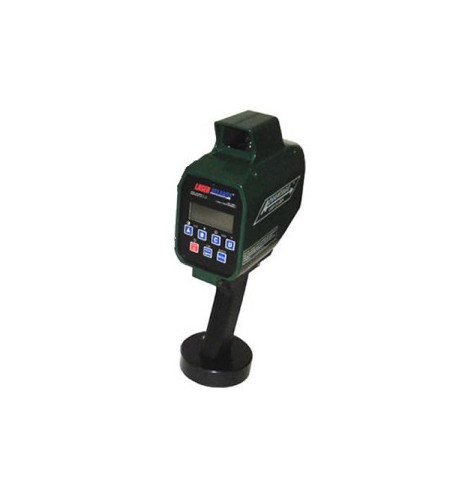

- (1) Laser Atlanta 3SC1 Advantage S Range Finder
- (1) Tripod mountable battery handle
- (1) Soft carrying case
- (1) Standard 120AC charger
- (1) User manual
- (1) 1-year warranty
