LABORATORY CBR TEST SET – CBR Laboratorium ( SO-360 A) , ASTM D-1883 – AASHTO T-193

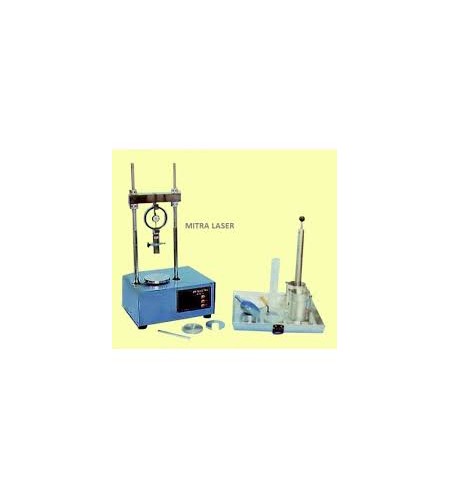

SO-360 A LABORATORY CBR TEST SET ( CBR Laboratorium) , ASTM D-1883 – AASHTO T-193; According SNI 03-1744-1989
For determining the bearing ratio of soil.
Consist of :
SO-361 A Electrical Loading Machine ( 1 set)
Electric, 220 V-AC, 1/ 2 HP, 1 Phase, speed 0.05 ” / min
reversing switch 10.000 lbs capacity.
SO-362 CBR Mold ( 3 pcs)
Machine steel, 6 ” i.d, 7 ” height, 2 ” height of collar.
SO-363 Spacer Dish; machine steel, 5 15/ 16 ” dia, 2.416 ” height ( 1 pc)
SO-364 Cutting Edge; machine steel, sharp edge ( 1 pc)
SO-365 Circular Surcharge Weight ( 3 pcs)
Machine steel, 5 7/ 8 ” dia 5 lbs weight
SO-366 Slotted Surcharge Weight ( 3 pcs)
Machine steel, 5 7/ 8 ” dia 5 lbs weight.
SO-354 Modified Proctor Hammer ( 1 pc)
Machine steel, plated, 18 ” drop height, 10 lbs weight.
SO-369 Filter Paper; 6 ” dia., 100 sheets/ box ( 1 box)
GE-101/ 6 Proving Ring; 6.000 lbs capacity ( 1 set)
GE-131 Dial Indicator; range 0.01 ” x 1 ” ( 1 pc)
GE-303 Square Pan; galvanized steel, 65 x 65 x 7.5 cm ( 1 pc)
GE-390 Thin Box; alumunium, 60 gr capacity ( 12 pcs)
GE-405 A Graduated Cylinder; plastic, 1000 ml capacity ( 1 pc)
GE-801 Scoop; cast alumunium ( 1 pc)
GE-871 Trowel; pointed type ( 1 pc)
GE-890 Straight Edge; 300 mm length ( 1 pc)
Dimension ( l x w x h) : 110 x 70 x 120 cm
Gross Weight : 200 kg
