Liquid Leak Detector Fisher Labs XLT30-A w/Big Foot Microphone and Hydrophobic Probe
Description :
Liquid Leak Detector Fisher Labs XLT30-A
Fishers XLT-30 takes leak detection to a new level. Ultra sensitive sound microphones, combined with a non-distortion amplification system and crystal clear audio headphones make the XLT-30 the leak detector destined to set new standards for the leak professional
Option A – The Big Foot Sensor, also known as the Ground Microphone, is to be used on hard surfaces, concrete, asphalt, tile, etc. A flexible rubber shield helps pre-vent outside sounds from interfering with the sounds from the buried pipe. Press and hold the red button near the handle to mute the audio from the probe and suppress loud sounds when the probe is moved.
Specifications:
- Operating Frequency: 60 Hz – 6 kHz, Gain = 95 db; 20 Hz – 60 Hz, Gain > 90 dB
- Filter Types and Frequency Ranges: All Pass: 60 Hz to 6 kHz; Low Pass: Adjustable cut-off frequency from 150 Hz to 2.4 kHz; High Pass: Adjustable pass band frequency from 150 Hz to 2.4 kHz; Band Pass: Adjustable center frequency from 150 Hz to 2.4 kHz; Notch Filter: Adjustable center frequency rejection from 150 Hz to 2.4 kHz. Can be used simultaneously with any filter option
- Output Indications: Audio: High performance headphones (64 ohms)
- Visual: LCD bargraph and 2-digit numeric display
- Grade of Protection: Splash Proof
- Battery Test: Automatic, real time battery level indicator
- Battery Quantity/Type: Two, 9 Volt alkaline
- Battery Life: 50 Hours (approximate)
- Carrying Case Dimensions: 21”x 6”x 14”
- Weight: 10 lbs

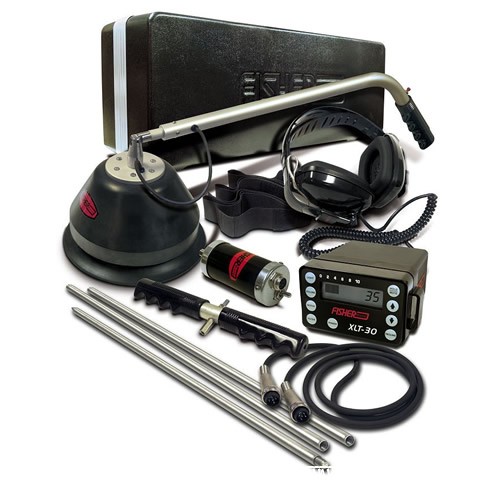

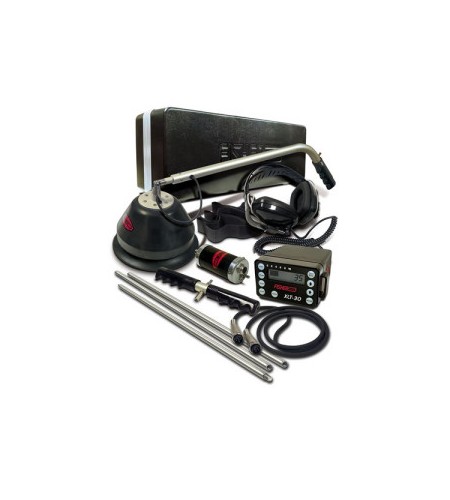

What’s in the Box:
- (1) Heavy-Duty Carrying Case
- (1) Hydrophonic Cylinder Probe
- (1) Probe Cable Assembly
- (1) Operation Manual
- (1) Control Unit
- (1) Head Phones
- (1) Big Foot
- (1) Carry Strap
- (1) Housing Bracket
- (1) Sound Rods
