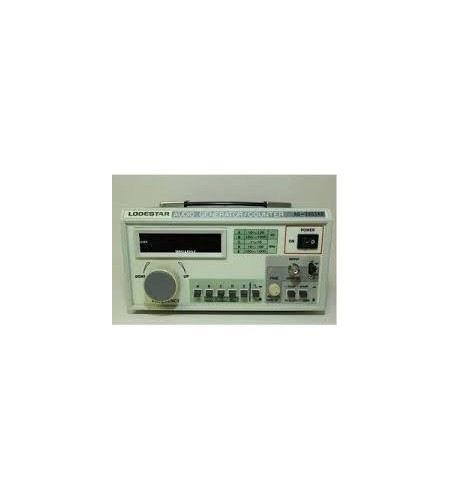

Lodestar AG-2603AD 10Hz~1MHz Digital Audio Generator

Lodestar AG-2603AD 10Hz~1MHz Digital Audio Generator

Specifications:

Oscillator section

• Frequency range: 10Hz ~ 1MHz 5 decade bands.
• Accuracy: With counter section accuracy.
• Output impedance: 600Ω, unbalance.
• Output control: 0dB / -20dB / -40dB and fine adjuster.

Sine wave output

• Range: 10Hz ~ 1 MHz.
• Output voltage: 8Vrms, max.
• Output distortion:
  • Less than 0.05% 500Hz ~ 50KHz.
  • Less than 0. 5% 50Hz ~ 500KHz.
  • Output flatness: ±1dB (1KHz).

Square wave output

• Range: 20Hz ~ 20KHz.
• Output voltage: 15Vp-p or more.
• Rise time: 0.5us.

Synchronization

• Range: ±1% / V of oscillator frequency per Vrms.
• Input impedance: Approx 10KΩ.
• Maximum input: 10Vrms.

Counter section

• Frequency range:
  • 10Hz to 150MHz.
  • HF 10 Hz to 10MHz.
  • VHF 10MHz to 150MHz.
  • Accuracy: ±1 count, ±reference time accuracy.
  • Gate time: 0.1 sec and 1 sec.
  • Input sensitivity:
    • 35mV ~ 50mV.
    • 10Hz ~ 150MHz.
  • Input Impedance: HF1MΩ VHF50Ω
  • MAX input voltage: Less about 3V effective.
  • Reference time frequency: 10MHz.
  • Reference time accuracy:
    • 5 x 10-5 (50ppm) 0°C to 40°C.
    • 1 x 10-5 (10ppm) 23°C ±3°C.

Display: Decimal 6 digital LED.

Power requirement: AC 115 / 230V ± 10% 50 / 60Hz Approx 4VA.

Dimensions & weight: 215 (H) x 120 (W) x 220 (D) mm.

Approx 1.6kgs.

Accessories: BNC-clips x 1.
