KYORITSU 5410 RCD Tester

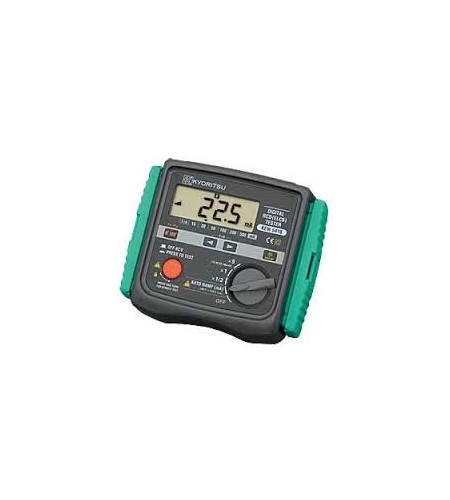

Gambar Produk
KYORITSU 5410 RCD Tester
Pengiriman
1 Hari Setelah Pembayaran
Lokasi
Harga
Kontak Kami
Dilihat Sebanyak
33 kali
Update Terakhir
13-03-2017
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi KYORITSU 5410 RCD Tester
KYORITSU 5410 RCD Tester
Measurement of RCD trip time
- Conducting testing of rated residual non-operating currents at × 1/2 Range, measuring RCD trip time at × 1 and × 5 Ranges.
Measurement of trip out current
- Measuring trip out current by varying current automatically.
Remote Test
- Enabling a user to hold the Test Leads with his both hands by locking the Test Button. Measurement will automatically start when the main voltage is detected.
Voltage Measurement
- Carrying out a constant measurement of voltage in the stand-by mode at each Range.
Auto-detection of Contact voltage
- Detecting the voltage to earth of Earth electrodes or Protective conductors during RCD test – when applying test currents – at measurement using EARTH in order to prevent electrical shocks caused by the damaged earth. Measurement will be ceased at AC50V or more.
Dust- and Water-proof
- Dust- and Water-proof construction (designed to IEC 60529 IP54).
Backlight
- Facilitating working at dimly illuminated locations.
| Measurement of RCD trip time – Measurement of trip out current | ||||||||
| Range | ×5 | ×1 | ×1/2 | AUTO RAMP (mA) | ||||
| Rated Voltage | 100V±10% 200V+32%/-10% 400V±10% (50/60Hz) |
|||||||
| Test current | 15/30/50/100mA | 15/30/50/100/200/500mA | 15/30/50/100/200/500mA | |||||
| Measuring range | Testing time 200ms |
Testing time 2000ms |
Testing time 2000ms |
40%~110% of lΔn (goes up by 5%) Testing time 300ms × 15steps |
||||
| Accuracy (Trip Time) |
|±1%rdg±3dgt | |±1%rdg±3dgt | |±1%rdg±3dgt | Test Current at each step -4%~+4% |
||||
| Accuracy (Test Current) |
|+2%~+8%dgt | |+2%~+8%dgt | |-8%~-2%dgt | |||||
| Voltage Measurement | ||||||||
| Measuring range | 80V~450V (50/60Hz) | |||||||
| Accuracy | |±2%rdg±4dgt | |||||||
| Applicable Standard | IEC 61010-1 Pollution degree2 CAT.III 300V / CAT.II 400V IEC 61010-031 IEC 61557-1, 6 IEC 60529 (IP54) |
|||||||
| Display | 1999 counts (3 1/2digits), Large LCD | |||||||
| Operating temperature & humidity | 0ºC~40ºC, relative humidity 85% (no condensation) | |||||||
| Storage temperature & humidity | -20ºC~60ºC, relative humidity 85% (no condensation) | |||||||
| Withstand Voltage | AC3700V / 1 min. (between electrical circuit and enclosure) | |||||||
| Insulation resistance | 50MΩ or more / 1000V (between electrical circuit and enclosure) | |||||||
| Sleep Function |
|
|||||||
| Power Source | DC 12V / Size AA battery R6P (SUM-3) × 8 pcs. | |||||||
| Dimension | 186(L)×167(W)×89(D)mm | |||||||
| Weight | Approx. 965g (including batteries) | |||||||
| Possible number of Measurements | 1200 times or more (measure every 30 seconds at ×1/2 Range, lΔn=100mA) |
|||||||
| Accessories | 7128A (Test leads) 7129A (Test lead with alligator clip) 8017 (Long pin) × 2 Cord case, Strap belt, Instruction manual, Size AA battery R6P(SUM-3)×8pcs. |
|||||||
(*) Only the RCD type G (without trip out time-delay) can be tested at Auto Ramp Test, type S (time-delay) cannot be tested.
