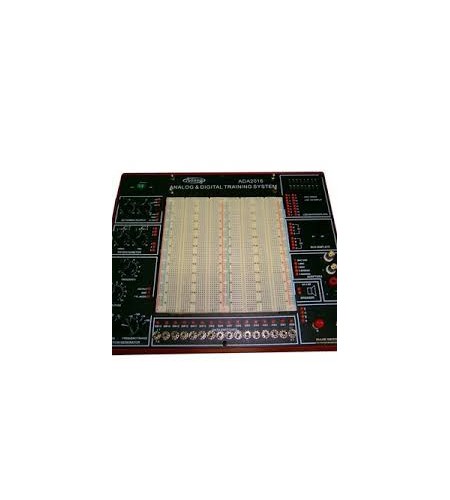

Gambar Produk
Aditeg ADA-2016 Analog Digital Training System
Pengiriman
1 Hari Setelah Pembayaran
Lokasi
Harga
Kontak Kami
Dilihat Sebanyak
32 kali
Update Terakhir
13-03-2017
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Aditeg ADA-2016 Analog Digital Training System
Aditeg ADA-2016 Analog Digital Training System
Specification
| Digital Training System | |||
| Solderless Breadboard | Interconnected with 2820 tie points nickel plated contact,fitted all DIP sizes and all components with lead and solid wire AWG # 22-30 (0.3-0.8mm).It can be changed and replaced for different purpose and can be connected with demonstration panel. Therefore, it is very convenient for both teachers and students. | ||
| DC Power Supply | |||
| Fixed DC Output | +5V, 1A | ||
| Fixed DC Output | -5V, 1A | ||
| Variable DC Output | 0V to +15V, 1A | ||
| Variable DC Output | 0V to 15V, 1A | ||
| Potention Meters | |||
| A. Variable resistor VR1 | 1kΩ | ||
| B. Variable resistor VR2 | 100kΩ | ||
| Function Generator | |||
| Frequency Range | 1Hz – 10Hz
10Hz – 100Hz 100Hz – 1kHz 1kHz – 10kHz 10kHz – 100kHz |
||
| Amplitude | Sine wave output 010 Vpp variable
Triangle wave output 010 Vpp variable Square wave output 010 Vpp variable TTL mode output 4 Vpp |
||
| Two Digits Of 7 Segment LED Display | 2pcs push buttons contain switches debouncer for
eliminating the bounce caused by switch from open to close or from close to open position. |
||
| Two Pulse Switch | 16pcs toggle switches and corresponding output point.
When switch is set at downposition,the output is LO level; contrarily, it is to be HI level while setting at up position |
||
| Speaker | 2 ½ inch diameter, 8 ohm/0.5W to be used for load | ||
| Four Channel Adaptor | Both of the two banana socket and two BNC jacks point tips are changeable. It is suitable for M21-7000 to be connected with peripherals | ||
| Sixteen Bits LED Display | 16 red LED’s separate input terminals. The LED will be lighted up when input is at HI level ,and it will be turned off when it is at no input or at LO level | ||
|
Universal Connector Fixed Holder |
It reserves universal connector fixed holder on the panel in order to be connected with various universal connectors, which are available |
1. Straight header 60 pin | |
| 2. Card edge connector 2.54mm 62pin | |||
| 3. D sub25 pin connector, male & female | |||
| 4. Card edge connector 3.96mm 56pin | |||
| 5. Dip sockets connector 28 pin & 40 pin | |||
|
Other Standard Accessories |
1. Power Cord | ||
| 2. Pin 10 pcs | |||
| 3. User Manual | |||
| Dimensions & Weight | 258 x 95 x 334mm(WxHxD) & Approx 4.5kg | ||
