ATTEN ATF20B DDS Function Generator(40mHz – 20MHz)

ATTEN ATF20B DDS Function Generator(40mHz – 20MHz)

INSTRUCTIONS

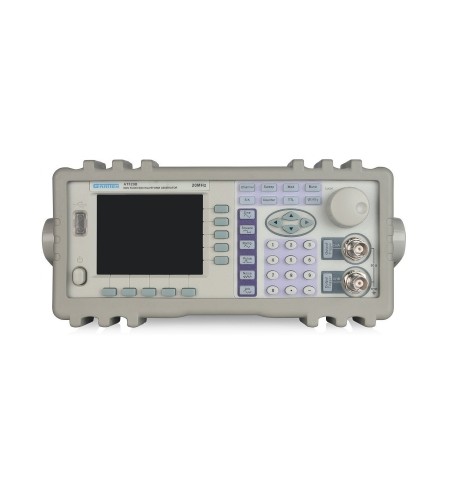

ATF20B Function generator uses Direct Digital Synthesis (DDS)technology. Its outstanding performance and system features make it a perfect solution for your testing requirement. The simplified and optimized design of the front panel and dual-language (English/Chinese)TFT display interface make your testing much easier for operation and observation. Additionally, the extendable optional functions can also improve your system characteristics.

FEATURES

* Direct Digital Synthesis (DDS) technology, independent output channels

* High Frequency Resolution: full-range resolution is 40 MHz

* Store 40 sets of the user parameters and recall

* 32 kinds of standard or build-in fixed waveforms

* Minimum stable output waveform: 1mV(50)

* Multiple modulation functions: FM, FSK, ASK, PSK

* Frequency sweep, amplitude sweep and burst functions

* Count the frequency, period, amplitude RMS value or peak-to-peak value

* Over-voltage, over-current, output short-circuit and reverse voltage protections

* High reliability: use VLSI components and surface mount technology

* Power Amplifier: optional part, maximum output power up to 7W

* Optional configurations: RS232 interface, Frequency Counter, Power Amplifier

GENERAL CHARACTERISTICS

* Power Supply: AC220V (1±10%)

* AC110V (1±10%) (Pay attention to the voltage selection on rear panel)

* Frequency:50Hz (1±5%)

* Power Consumption: < 45VA

* Operating Temperature: 0°C to +40°C

* Operating Humidity: 80% R.H

* Operation Characteristics: Keypad operation and rotary knob operation

* Display: TFT display, 320*240

* Weight: 3.5kg
