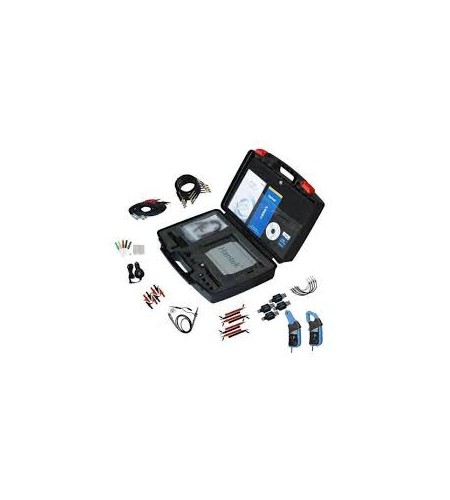

Gambar Produk
Hantek DSO3064 Kit VII Automative Diagnostic Equipment
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Harga
Kontak Kami
Dilihat Sebanyak
32 kali
Update Terakhir
13-03-2017
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Hantek DSO3064 Kit VII Automative Diagnostic Equipment
Hantek DSO3064 Kit VII Automative Diagnostic Equipment
4 Channels, 10K-16M Memory Depth, Frenquency Counter, FFT, USB 2.0 interface plug and play; LAN optional.
Overview
Vehicle Diagnosis :
- First Diagnosis(Cranking Exhaust Diagnosis)
- Ignition Action(Current/Voltage)
- The Sensor(Air Flow Meter,Camshaft,Crankshaftˇ)
- Bus Diagnosis(CAN Bus Data View)
- Performer(Petrol/Diesel)
- Startup&Charge(Charging Circuits Current/Voltage)
Oscilloscope:
- 4 Channels and EXT trigger, 60MHz Bandwidth.
- 200MS/s real-time sampling rate, 10k–16M memory depth per Channel.
- Frequency Counter,FFT spectrum analysis.
- 8–36V Wide range of input voltage,suitable for vehicle power test.
- USB 2.0 interface plug and play, LAN optional.
- More than 20 kinds of automatic measurement andPASS/FAIL Check function, which is suitable for engineering application.
- Excellent industrial design, similar interface with bench oscilloscope ,Easy to use.
- Software support: Windows NT, Windows 2000, Windows XP,VISTA,Win7, Win8.
- Supply DEMO code (VC,VB,LABVIEW) and technical support.
Parameters
| Model | DSO3064 |
| Vertical System | |
| Analog Channels | 4 |
| Bandwidth | 60MHz(-3dB) |
| Rise Time | 5.8ns |
| Input Impedance | Resistance: 1MΩ ; Capacitance: 25 pF |
| Input Sensitivity | 10mV/div to 5V/div |
| Input Coupling | AC/DC/GND |
| Vertical Resolution | 8 bits |
| Memory Depth | 10K-16M/CH |
| Maximum Input | 400V (DC+AC Peak) |
| Horizontal System | |
| Real-Time Sampling Rate | 200MS/s |
| Time Base Range | 5ns/div to 1000s/div(1-2-5 sequences) |
| Time Base Precision | ±50ppm |
| Trigger System | |
| Source | CH1, CH2,CH3,CH4,EXT |
| Mode | Edge,Pulse,Viedo,Alternative |
| Voltage Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Cursors Measurement | Horizontal ,Vertical, Track, Auto Measure Modes |
| Waveform Signal Process | +,- , x,÷, FFT, Invert |
| Voltage Range | 10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe; 1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe; 100V to 50000V/div @ x 10000 probe; 200mV to 100V/div @ 20:1 |
| Current Range | CC65(20A),CC65(60A),CC650,CC1100 |
| FFT | Rectangular,Hanning,Hamming,Blackman Window |
| Math | Adition,subtraction,multiplication,division |
| Gennral Feature | |
| Interface | USB 2.0(Lan Optional) |
| Power Source | 8–36V Wide range of input voltage |
| Volume | 255 x 190 x 45 (mm) |
| Weight | 1Kg |
