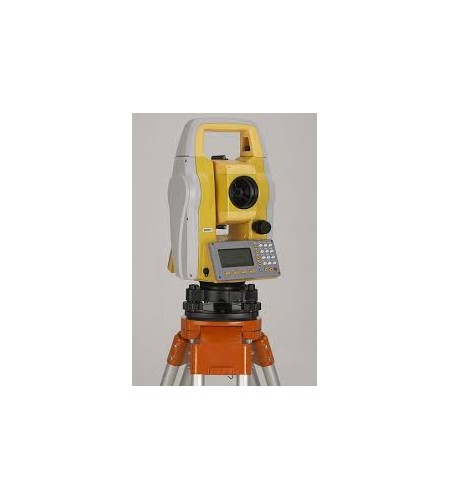

Total Station Hi-Target ZTS 320R Reflectorless
Features :

Absolute Encoding

The absolute encoding disk ensures high accuracy, efficiency and stable performance. Initialization is needless but to measure the angle immediately as the ZTS-320/ R is turned on. The azimuth information won’ t be missed even the ZTS-320/ R is power-off unexpectedly.

Dual-axis Compensation
The ZTS-320/ R is configured with advanced dual-axis compensatorfor auto error elimination and auto accuracy compensation.

High-performance MCU
The STM32 MCU based on ARM Cortex™ -M processor enables the ZTS-320/ R has extra high processing speed and low-power consumption.

Bluetooth
The Bluetooth wireless technology makes ZTS-320/ R accessible to any data collector for real-time communication. The third party field software such as Carlson SurvCE is fully compatible with the ZTS-320/ R.

Data Storage
Diversified data transfer options such as SD card, USB pen drive, mini-B interface.

Backlight
The display and keyboard with backlight for working in the dark.

Diagonal Eyepiece
Support diagonal eyepiece for observations at steep line of sight.

Calibration Software
The proprietary HI-TARGET Calibration software is accessible for real-time diagnosis to ensure trouble-free operation.

Data Transfer Software
The proprietary HI-TARGET data transfer software supports different type of output data format, which can be used in AutoCAD or other brands’ post processing software.

TECHNICAL PARAMETERS

Angle Measurement
Measurement Method: Absolute Encoding
Minimum Readout: 13/ 53/ 103 0.3mgon/ 1.5mgon/ 3mgon adjustable
Accuracy1 : 2”

Distance Measurement ( ZTS-320 with Reflector)
Single Prism: 3000m ( 9, 842ft.) under good condition3
Three Prisms: 6000m ( 19, 685ft.) under good condition3
Reflective Sheet: 800m ( 2, 624 ft.)
Accuracy: 2 mm + 2ppm
Measuring Time ( Fine/ Quick/ Tracking) : 1.5s/ 1s/ 0.5s

Distance Measurement( ZTS-320R Reflectorless)
Reflectorless2 Range: 350m ( 1, 148 ft.)
Single Prism: > 7500m ( 24, 606ft.)
Accuracy: 3mm+ 2ppm
Measuring Time: 1.5s

Telescope
Magnification: 30X
Field of View: 1° 302 ( 2.7m at 100m)
Minimum Focusing Distance: 1.5m
Reticle: Illuminated

Compensator
System: Single-axis liquid tilt sensor/ Dual-axis ( optional)
Working Range: ± 32
Setting Accuracy: 13

Communication
Bluetooth
Interface: Standard RS232, SD card4, USB pen drive, mini-B
Internal Data Memory: Approx. 20, 000 Points
Data Format: ASCII

Operation
Operation system: Real-time Operating System
Display: High resolution backlight black and white display with contrast adjustment/ Graphics: 192 x 96 pixels / Character: 6 lines x 25 characters
Keyboard: 2 sides Alphanumeric backlit crystal keyboard

Laser Plummet
Type: Laser point, 4 brightness levels adjustment / Optical plummet ( optional)
Centering Accuracy: 1 mm at 1.5m instrument height

Power Supply
Battery Type: Rechargeable Li-ion battery
Voltage/ Capacity: ZBA-400: 7.4V ( DC) / 3000mAh
Operating Time With ZBA-400: Optimal 16 hours5 ( Continuous angle measurement every 30 seconds) / 10 hours ( typical)
Measuring Times: Approx. 12000 times

Weight
Weight ( Incl. Battery & Tribrach) : Approx. 5.5kg ( 12.1lb.)

Environmental
Operating Temperature: -20 ~ b50 ( -4 to + 122 )
Storage Temperature: -40 ~ b70 ( -40 to + 158 )
Dust & Water Proof ( IEC60529 Standard) / Humidity: IP65, 95% , non-condensing
