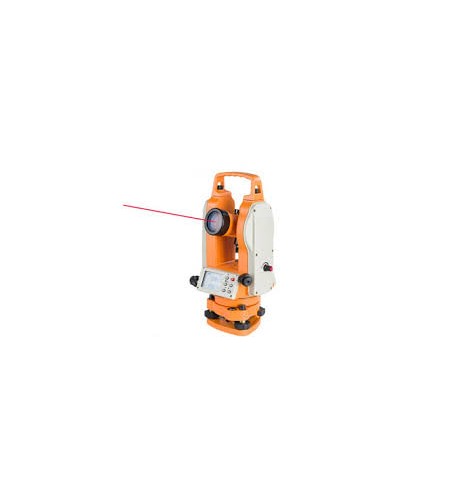

Digital Theodolite Geo Fennel FET 402KL With Two-Axis Compensator
Features
2 large easy-to-read LCDs
Simultaneous reading of horizontal and vertical circle
Illumination of display and field of view
Clockwise / anti-clockwise horizontal angle reading
„ 0“ set or hold of horizontal circle at any desired position
„ V“ circle reading in gon / degrees or % of slope
Technical data
Magnification 30 x
Clear objective aperture 45 mm
Shortest focusing distance 1, 4 m
Angle measurement incremental
Accuracy 0, 6 mgon ( 2′ ‘ )
Minimum reading 0, 2 mgon ( 1’ ‘ )
Compensator Dual axis
Measuring units 400 gon/ 360° / mil
Target focusable
Lasser class 3R
Beam diameter 5mm / 100m
Maximum visibility 180m
Deviation 5’ ‘
Optical plummet 3 x
Focusing range 0, 5 –
Plate level 30’ ‘ / 2 mm
Circular level 8’ / 2mm
Operating time / Power supply 35 h NiMH/ 40 h Alkaline
Theodolite und laser 24h NiMH / 30 h Alkaline
Temperature range -20° C – + 50° C
Dust / water protection IP 54
Tribrach detachable
Weight 4, 5 kg
