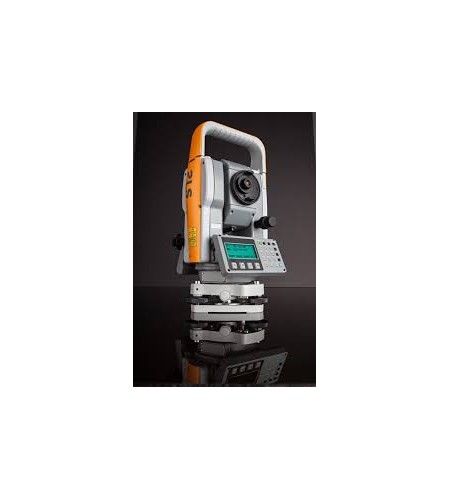

Product description Combining superior performance and outstanding affordability, this total station features a 200m reflectorless range and up to a 2, 000m range when using a single prism. A built-in laser pointer assists in layout work. In addition to a 24-key alphanumeric keypad and a 24, 000 point memory capacity, the total station’ s battery provides up to 23 hours of operation on a single charge. IP54 Environmental rating
Specifications Total Station Cygnus KS-102R ( Reflectorless )
Telescope – Magnification: 30x. Image: Erect. Field of View: 1° 30’ . Resolving Power: 3.0” . Minimum Focus Distance: 1.3m. Angle Measurement – Display Resolution: 1” / 5” . Accuracy: 2” . Axis Compensator: 1 axis, ± 3’ ( Compensation range) . Distance Measurement – Measuring Range: Reflectorless, 200m; Prism, 2, 000m ( single prism) . Accuracy: Reflectorless, ( 3+ 2 ppm x D) mm; Prism, ( 2+ 2 ppm x D) mm. Measuring Time ( Fine) : 1.1s. Interface and Data Management – Display: Graphic LCD. Keyboard: 24 Alphanumeric keys. Control Panel Location: 2 Sides. Data Storage: 24, 000 points in internal memory. Interface: Serial RS-232C. General – Levels: Plate Level, 30” / 2mm; Circular Level, 10’ / 2mm. Optical Plumment ( Magnification) : 3x. Dust and Water Protection: IP54. Operating Temperature: -20° C to 50° C. Power Supply: BT-77Q battery. Operating Time: Approximately 23 hours. Dimensions ( with handle) : 13.2” H x 7.2” W x 6.8” L. Weight ( with battery and tribrach) : 10.8 lbs.
