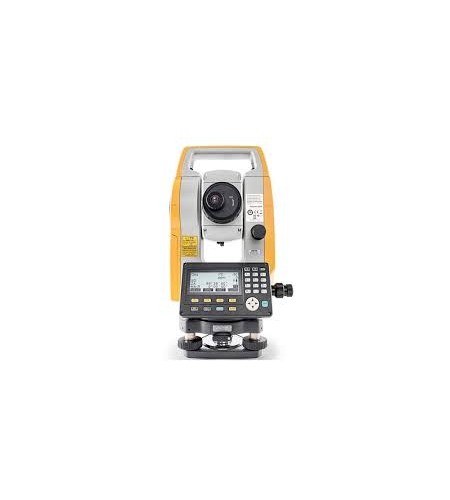

Alat Survey - Total Station Topcon ES 55
Gambar Produk
Alat Survey - Total Station Topcon ES 55
Brand
Topcon
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Harga
Kontak Kami
Dilihat Sebanyak
91 kali
Update Terakhir
10-03-2017
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Alat Survey - Total Station Topcon ES 55
Overview for the Topcon ES 55 5 Second Reflectorless Total Station
The Topcon ES 55 Reflectorless Total Station with 5 arc second accuracy and dual axis compensation provides an entry-level surveying solution. Fast and highly accurate, it measures angles and distances up to 1,148 away in reflectorless mode and 13,120 feet when using a single prism. It also has a built-in coaxial EDM beam and a laser pointer.
Featuring a single graphic display and 25 alphanumeric keys, the Topcon ES-55 offers quick and easy controls and setup. This total station is capable of storing 5,000 points in its internal memory and connects with Topcon data collectors, such as the FC-5000, FC-236, FC-2600, Tesla and more for seamless data transfer.
With an IP66 rating, the ES-55 is dustproof and water resistant. This Topcon reflectorless total station has a 15-hour battery life, on-bard survey software, and comes with a 2-year manufacturer’s warranty.
Price Negotiable
Specifications for the Topcon ES 55 5 Second Reflectorless Total Station
|
General
|
|
| Weight | 12.3 lbs (5.6 kg) |
| Dimensions | 7.5 in x 6.8 in x 13.7 in (19.1 cm x 17.4 cm x 34.8 cm) |
| Warranty | 1-year |
| Protection Class | IP66 (dust proof and powerful water jets and heavy seas resistant) |
| Tripod Thread | 5/8 x 11 in. |
| Internal Memory | 5,000 points |
| Software | On-board |
| Guide Light | yes |
|
Angle Measurement
|
|
| Accuracy | 5-second |
|
Distance Measurement
|
|
| Unit of Measure (distance display) | m/ft/in. |
| EDM Accuracy (Precision) | ±(2mm + 2ppm x D) for prism; ±(3mm + 2ppm x D) for no prism |
| Minimum Reading | 350 m (1,148 ft) |
|
Tilt Sensor/Compensator
|
|
| Range | ± 6 |
| Type | Dual axis liquid |
|
Battery/Power
|
|
| Power Source | Rechargeable Li-ion battery |
| Battery Life | 15 hours |
| Battery Life Alert | yes |
| Voltage | 7.2v |
|
Optical Plummet
|
|
| Magnification | 3x |
|
Level
|
|
| Circular Bubble Vial | 10 minutes per division/(2 mm) |
|
Telescope
|
|
| Length of Tube | 6.7 in (17.1 cm) |
| Image | Erect |
| Diameter of Objective Lens (Aperture) | 1.9 in (48mm) EDM |
| Magnification | 30x |
| Field of View | 1 degree 30 arcmin |
| Resolving Power | 2.5 arcsec |
| Minimum Focus Distance | 1.3 m (4.3 ft) |
| Reticle Illumination | 5 brightness levels |
| Reflectorless | yes |
|
Display and Keypad
|
|
| Type | Graphic LCD |
| Sides | Single |
| Keys | Alphanumeric |
| Backlight | yes |
| Pixels | 192 x 80 |
|
Temperature
|
|
| Operating | -4Fº~140ºF (-20ºC~60ºC) |
|
Applications
|
|
| Surveying and Construction | yes |
| Mapping and GIS (geographic information systems) | yes |
| Utilities | yes |
| Environment Studies | yes |
| Geomarking | yes |
| Archaeology | yes |
| Accident Reconstruction | yes |
|
Measurement Range (under fair weather conditions)
|
|
| Single Prism | 4,000 m (13,123 ft) |
| No Prism | 350 m (1,148 ft) |
| Mini Prism | 500 m (1,640 ft) |
| Reflector Sheet | 500 m (1,640 ft) |
|
Functions
|
|
| Coordinate Measurement Point | yes |
| Angle and Distance Stake Out | yes |
| Stake Out Line | yes |
| Offsets | yes |
| Missing Line | yes |
| Remote Elevation | yes |
| Resection | yes |
| Area Calculation | yes |
|
Measurement Time
|
|
| Fine | 0.9-second |
| Rapid | 0.7-second |
| Tracking | 0.3-second |
|
Laser Pointer
|
|
| Class | Coaxial red laser using EDM beam |
|
Interface
|
|
| Pin Port | RS-232C. |
