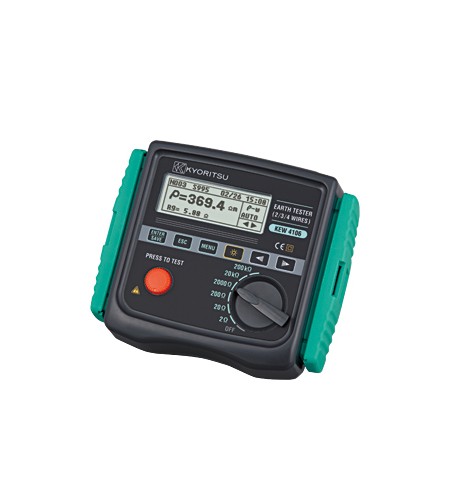

KYORITSU Earth Resistance & Resistivity Tester KEW 4106

Update Terakhir

09-03-2017

Dilihat Sebanyak

105 kali

Lokasi

Jawa Barat - Bekasi - Bekasi Utara

Harga

Kontak Kami

+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi KYORITSU Earth Resistance & Resistivity Tester KEW 4106

Earth Resistance & Resistivity Tester

• High test current up to 80mA yielding resolution of 0.001Ω on 2Ω range.
• Advanced Filtering method (based on FFT Fast Fourier Transform) reduces noise interference for obtaining stable measurements.
• Automatic and Manual selection of the Test Current Frequency in four bands (94/105/111/128Hz). In Automatic mode, KEW 4106 will select the most suitable Frequency.
• Several sub-results can be shown on the display: Resistance of the Auxiliary Earth Spikes, Frequency of Test Current, Voltage and Frequency of Interference (noise), Residual Resistance Rk, etc.
• Warning for excessive noise and high Auxiliary Earth Spikes resistance.
• Large Graphic Display with backlight for readings in poorly illuminated areas.
• Up to 800 measurement results can be saved in the memory and recalled on the display.
• The stored results can be transferred to a PC using the "KEW Report" software and a USB adaptor (Model 8212-USB) which are included.
• Robust design with IP54 protection.

Function	Range	Resolution	Measuring range	Accuracy
Earth resistance Re (Rg at ρ measurement)	2Ω	0.001Ω	0.03 - 2.099Ω	±2%rdg±0.03Ω
	20Ω	0.01Ω	0.03 - 20.99Ω	±2%rdg±5dgt (*1)
	200Ω	0.1Ω	0.3 - 209.9Ω
	2000Ω	1Ω	3 - 2099Ω
	20kΩ	10Ω	0.03k - 20.99kΩ
	200kΩ	100Ω	0.3k - 209.9kΩ
Auxiliary earth resistance Rh, Rs				8% of Re+Rh+Rs
Earth resistivity ρ	2Ω	0.1Ω·mm - 1Ω·m Autoranging	0.2 - 395.6Ω·m	ρ=2×π×a×Rg (*2)
	20Ω		0.2 - 3956Ω·m
	200Ω		20 - 39.56kΩ·m
	2000Ω		0.2 - 395.6kΩ·m
	20kΩ		2.0 - 1999kΩ·m
	200kΩ		2.0 - 1999kΩ·m
Series interference voltage Ust (A.C only) (*3)	50V	0.1V	0 - 50.9Vrms	±2%rdg±2dgt (50/60Hz)
Series interference voltage Ust (A.C only) (*3)	50V	0.1V	0 - 50.9Vrms	±3%rdg±2dgt (40 - 500Hz)
Frequency Fst	Autoranging	0.1Hz 1Hz	40Hz - 500Hz	±1%rdg±2dgt
Measuring method	Earth resistance: Fall-of-potential method (currents and voltages measured via the Probes) Measurement method of Earth Resistivity (ρ): Wenner 4-pole method Series interference voltage (earth voltage) RMS Rectifier (between the E-S Terminals)
Memory capacity	800 data
Communication Interface	Model 8212-USB Optical Adaptor
LCD	Dot-matrix 192×64 monochrome
Over-range Indication	"OL"
Overload Protection	between E-S(P) and between E-H(C) terminals AC280V / 10 sec.
Applicable standards	IEC 61010-1 CAT III 300V, CAT IV 150V Pollution degree 2 IEC 61010-031, IEC 61557-1, 5, IEC 61326-1 (EMC), IEC 60529 (IP54)
Power source	DC12V : sizeAA manganese dry battery (R6) × 8 (Auto power off: approx. 5 minutes)
Dimensions	167(L) × 185(W) × 89(D) mm
Weight	approx. 900g (including batteries)
Accessories	7229A (Earth precision measurement), 7238A (Simplified measurement test leads), 8032 (Auxiliary earth spikes [2 spiks/set])×2 sets (4 spikes in total), 8200-04 (Cord reel [4 pcs])×1 set, 8212-USB (USB adaptor with "KEW Report(Software)"), 9121 (Shoulder strap), 9125 (Carrying case), R6 × 8, Instruction manual, Calibration certificate
Optional	8212-RS232C (RS232C adaptor with "KEW Report(Software)")

(*1) Auxiliary earth resistance is 100Ω with Rk correction
(*2) Depending on the measured Rg. Interval [a] between auxiliary earth spikes is 1.0 - 30.0m
(*3) This instrument is NOT designed to measure line voltages on commercial powers.
