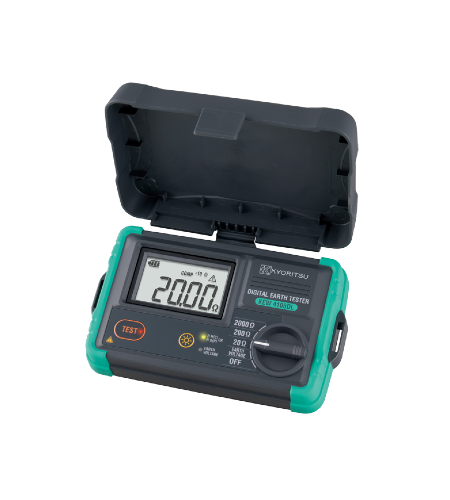

KYORITSU Earth Testers KEW 4105DL NEW

Brand
KYORITSU
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Dilihat Sebanyak
167 kali
Update Terakhir
09-03-2017
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi KYORITSU Earth Testers KEW 4105DL NEW


4105DL [Cable Reel Set Model] Coming soon
4105DL-H [Hard Case Model] NEW
• 3pole and 2pole Earth Resistance measurement (0.01Ω-2000Ω)
• Waterproof design (IP67)
• Rotary Switch makes the user interface very intuitive
• Large LCD Display with Backlight
• Led to monitor correct / non correct auxiliary earth spike resistance
• Earth Voltage Measurement (AC/DC 0-300V)
• CAT Ⅳ 100V
  • WP
  • Backlight
  • AutoPowerOff
Cable Reel Set Model Hard Case Model
Earth resistance
measurement		 20Ω 200Ω 2000Ω
  Measuring range 0.00 - 2000 Ω
Display range 0.00 - 20.99 Ω 0.0 - 209.9 Ω 0 - 2099 Ω
Accuracy*1 ±1.5%rdg±0.08 Ω*2 ±1.5%rdg±4dgt
Earth voltage measurement
  Measuring range 0 - 300 V AC (45 - 65Hz) ±0 - ±300 V DC
Display range 0.0 - 314.9 V 0.0 - ±314.9 V
Accuracy ±1%rdg±4dgt
Overload protection Earth resistance : 360V AC (10 seconds)
Earth voltage : 360V AC (10 seconds)
Applicable Standards IEC 61010-1, CAT IV 100 V /CAT III 150 V /CAT II 300 V Pollution degree 3
IEC 61010-2-030,IEC 61010-031, IEC 61557-1, -5
IEC 60529 IP67, IEC 61326-1, -2-2, EN50581(RoHS)
Power source LR6(AA)(1.5V) × 6
Dimensions 121(L) × 188(W) × 59(H) mm (including case lid)
Weight Approx. 690g (including batteries and case lid)
Accessories
for 4105DL 		 7127B(Simplified measurement probe)
8041(Auxiliary earth spikes[2 spikes/1set])
9121(shoulder strap),
7267(Cable reel for Earth resistance tester (red))
7268(Cable reel for Earth resistance tester (yellow))
7271(Earth resistance test leads)
9190(Carrying case)
LR6(AA) × 6, Instruction manual
Accessories
for 4105DL-H		 7127B(Simplified measurement probe)
8041(Auxiliary earth spikes[2 spikes/1set])
9121(shoulder strap),
7266(Earth resistance test leads[red-20m, yellow-10m, green-5m/1set])
9191(Hard case)
LR6(AA) × 6, Instruction manual
Optional 7272(Precision measurement Cord set),
8259(Adapter for measurement terminal)

*1 For precision measurement, auxiliary earth resistance should be 100 Ω ±5% or less.
*2 At simplified measurement add ±0.10 Ω to the specified accuracy.
