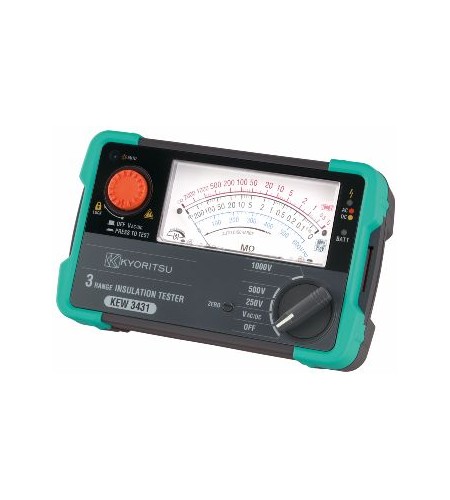

KYORITSU KEW 3431 NEW Analogue Insulation Tester

Update Terakhir

06-03-2017

Dilihat Sebanyak

89 kali

Lokasi

Jawa Barat - Bekasi - Bekasi Utara

Harga

Kontak Kami

+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi KYORITSU KEW 3431 NEW Analogue Insulation Tester

Analogue Insulation Testers

KEW 3431

• Extremely compact and lightweight design.
• Automatic sensor turns the illuminated scale and LED spot light ON/OFF, useful in dimly lit location.
• Standard accessories include test probe with remote control switch and protective carry case.
• Live circuit warning with buzzer and flashing LED.

Insulation resistance
	Test voltage	250V	500V	1000V
	Max. effective scale value	200MΩ		2000MΩ
	Mid-scale value	5MΩ		50MΩ
	First effective measuring ranges	0.1MΩ - 100MΩ		1MΩ - 1000MΩ
	Accuracy	±5% of indicated value
	Second effective measuring ranges	Measuring ranges other than above, 0 and ∞
	Accuracy	±10% of indicated value
	LED insulation state indicator indicating result by red / green color	0.25MΩ	0.5MΩ	1MΩ
Voltage measurement
	Voltage range	AC 600V [45 - 65Hz]/DC 600V
	Accuracy	±5% of full scale value
Applicable Standards		IEC 61010-1, 2-030 CAT Ⅲ 600V, IEC 61557-1, -2
Applicable Standards		IEC 61010-031, IEC 61326(EMC), EN 50581(RoHS)
Power source		LR6/R6(AA)(1.5V) × 4
Dimensions / Weight		97(L) × 156(W) × 46(D)mm / 430g approx.
Included Accessories		7260(Test lead with remote control switch),
		7261(Test lead with alligator clip), 9173(Carrying case),
		8017A(Extension prod long), 9121(Shoulder strap),
		LR6(AA) × 4, Instruction manual
Optional Accessories		7243(L-shaped probe), 8016(Hook type prod)
