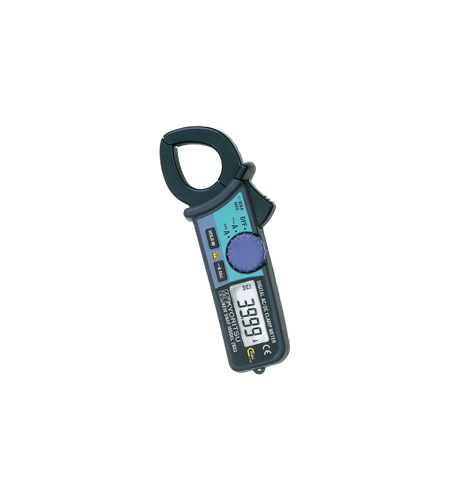

KYORITSU MODEL 2433R Leakage Clamp Meters

Brand
KYORITSU
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Dilihat Sebanyak
126 kali
Update Terakhir
06-03-2017
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi KYORITSU MODEL 2433R Leakage Clamp Meters



Leakage Clamp Meters

MODEL 2433R

MODEL 2433R
CE

• Frequency Selector Switch to eliminate the effect of harmonics.
• Three AC current ranges:40mA/400mA/400A.
• Resolution 0.01mA.
  • TRUE RMS
  • φ40
  • MAX400A
  • ACA
  • DATAHOLD
  • PeakHold10ms
  • Filter
  • AutoPowerOff

AC A (50/60Hz) 40/400mA/400A
±1%rdg±5dgt (40/400mA)
±1%rdg±5dgt (0 - 300A)
±2%rdg (300.1 - 399.9A)
AC A (WIDE) 40/400mA/400A
±1%rdg±5dgt [50/60Hz],
±2.5%rdg±10dgt [20Hz - 1kHz] (40/400mA)
±1%rdg±5dgt [50/60Hz],
±2.5%rdg±10dgt [40Hz - 1kHz] (0 - 300A)
±2%rdg [50/60Hz],
±5%rdg [40Hz - 1kHz] (300.1 - 399.9A)
Maximum circuit voltage 600V AC/DC (between line/neutral)
300V AC/DC (against earth)
Conductor size Ø40mm max.
Frequency response 20Hz - 1kHz [40Hz - 1kHz:400A]
Effect of External Stray Magnetic Field 10mA AC approx. in proximity to a 15mm-dia
conductor carrying 100A AC
Applicable standards IEC 61010-1 CAT III 300V Pollution Degree 2
IEC 61010-2-032
Response Time Approx. 2 seconds
Power source Two R03 or equivalent (DC1.5V) batteries
Dimensions 185(L) × 81(W) × 32(D)mm
Weight 270g approx.
Included Accessories 9052 (Carrying Case) R03 (1.5V) × 2
Instruction Manual
Optional Accessories 8008 (Multi-Tran)*

* This Multi-Tran can not be used for leakage current measurement
