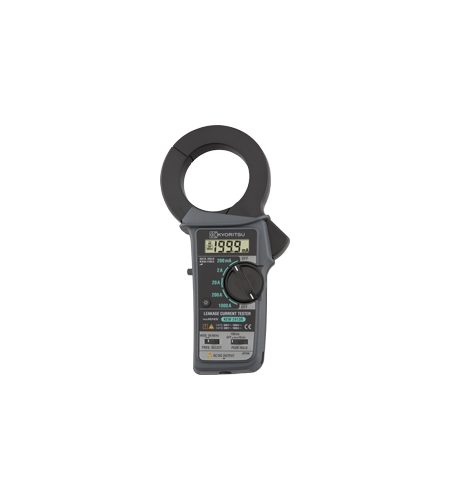

KYORITSU KEW 2413R Leakage Clamp Meters

Brand
KYORITSU
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Dilihat Sebanyak
103 kali
Update Terakhir
06-03-2017
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi KYORITSU KEW 2413R Leakage Clamp Meters



Leakage Clamp Meters

KEW 2413R

KEW 2413R
CE

• Large transformer jaws of 68mm diameter makes it possible to clamp on all three or four wires (3 phases) together for leakage current measurement.
• True RMS enables an accurate measurement for distorted waveforms.
• Measurement from mA up to AC 1000A
• Frequency filter switch to eliminate the effect of the harmonics.
• 2 way analogue output terminal
• Resolution 0.1mA
  • TRUE RMS
  • φ68
  • MAX1000A
  • ACA
  • DATAHOLD
  • PeakHold10/100ms
  • OutPut
  • Filter
  • Backlight

AC A (50/60Hz) 200mA/2/20/200/1000A
±2.5%rdg±5dgt (200mA/2/20A)
±3.0%rdg±5dgt (200A, 0 - 500A)
±5.5%rdg (501 - 1000A)
AC A (WIDE) 200mA/2/20/200/1000A
±1.8%rdg±5dgt (50/60Hz) (200mA/2/20A)
±2.0%rdg±5dgt (50/60Hz) (200A, 0 - 500A)
±5.0%rdg (50/60Hz) (501 - 1000A)
Crest factor 3.0 or less
Conductor size Ø68mm max.
Frequency response 40Hz - 1kHz
Output Waveform :
AC200mV against the maximum value of each range (1000A range is 100mV)
Recorder :
DC200mV against the maximum value of each range (1000A range is 100mV)
Applicable standards IEC 61010-1 CAT III 300V Pollution degree 2
IEC 61010-2-032
Power source 6F22 (9V) × 1 *Continuous measuring time: Approx. 60 hours
Dimensions 250(L) × 130(W) × 50(D)mm
Weight Approx. 570g (including battery)
Included Accessories 9094 (Carrying Case)
6F22 × 1
Instruction Manual
Optional Accessories 7073 (2WAY Output Cord)
