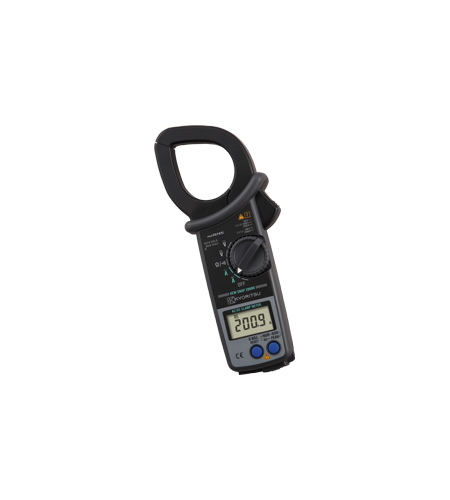

KYORITSU KEW 2009R AC/DC DIGITAL CLAMP METERS

Brand
KYORITSU
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Dilihat Sebanyak
123 kali
Update Terakhir
03-03-2017
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi KYORITSU KEW 2009R AC/DC DIGITAL CLAMP METERS



AC/DC Digital Clamp Meters

KEW 2009R

KEW 2009R
CE

• CAT IV Clamp Meter can measure the Voltage and Current in both very low and high power circuits.
• Accurate True-RMS reading of AC current or voltage with distorted waveform.
• Can measure AC and DC currents up to 2000A.
• Output terminal for connection to recorders.
  • TRUE RMS
  • CAT4　600V
  • φ55
  • MAX2000A
  • DCACA
  • DCACV
  • Resistance
  • Continuitybuzzer
  • Frequency
  • DATAHOLD
  • PeakHold10ms
  • OutPut
  • AutoPowerOff

AC A 400.0/2000A
±1.3%rdg±3dgt (0 - 400.0A, 150 - 1700A) (45 - 66Hz)
±2.0%rdg±5dgt (0 - 400.0A, 150 - 1700A) (20Hz - 1kHz)
±2.3%rdg±3dgt (1701 - 2000A) (45 - 66Hz)
DC A 400.0/2000A±1.3%rdg±2dgt
AC V 40.00/400.0/750V
±1.0%rdg±3dgt (45 - 66Hz)
±1.5%rdg±5dgt (20Hz - 1kHz)
DC V 40.00/400.0/1000V±1.0%rdg±2dgt
Ω 400.0/4000Ω ±1.5%rdg±2dgt
(Electronic protection (no fuse) up to 600V)
Continuity buzzer Buzzer sounds below 20Ω
Hz 10.0 - 4000Hz±1.5%rdg±5dgt
(Input sensitivityCurrent: more than 40AVoltage: more than 10V)
Conductor size Ø55mm max.
Output Recorder :
DC400mV against AC/DC400.0A
DC200mV against AC/DC2000A
Applicable standards IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61326-1, IEC 61326-2-1
Power source R6 (1.5V) × 2
Dimensions 250(L) × 105(W) × 49(D)mm
Weight Approx. 540g (including batteries)
Included Accessories 7107A (Test leads), 8201 (Output plug), 9094 (Carrying case)
R6 (AA) (1.5V) × 2, Instruction Manual
Optional Accessories 8008 (Multi-Tran) (AC only), 7256 (Output cord)
