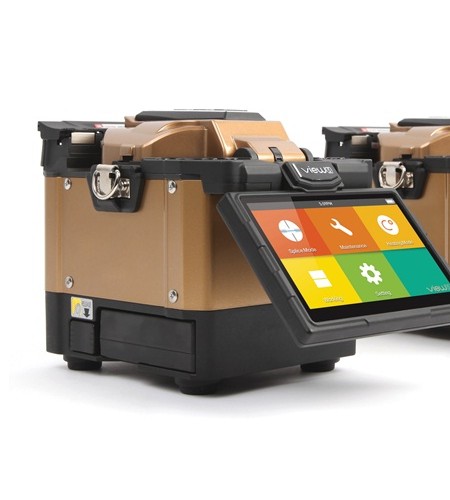

Fusion Splicer Inno View 5 Fusion Splicer Inno View 5, a core-alignment splicer with the world’ s highest fiber image magnification rate, is the most dependable fusion splicer in the market. View 5’ s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI ( Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can Zoom In & Out the image to the world’ s highest magnification of 520x. Also View 5’ s compat¬ ibility with SOC ( Splice-On-Connectors) will bring satisfactory experiences to users in FTTx field. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments. View 5 is the new industry standard of core-alignment splicer in the telecommunications industry.

• Core Alignment Splicing Method with DACAS ( Digital Analysis Core Alignment System)

• The Highest Magnification and Resolution

• 5” Color LCD Touch Screen

• Double Tapping ( Zoom in & out)

• Detachable SOC Holder and Heating Oven

• 3 Bright LEDs for Dark Environment

• Ceramic Clamp for Improved Durability Specifications:

• Model : View 5

• Dimension : 147H x 130W x 155D mm

• Weight : 2.21KG ( with battery) / 1.85KG ( without battery)

• Number of Fiber : Single

• Applicable Fibers : SM( ITU-T G.652& G.657) / MM( ITU-T G.651) / DS( ITU-T G.653) / NZDS( ITU-T G.655) • Compatible Fiber / Cable : 0.25~ 3.0 mm / Indoor Cable

• Cleaved Length : Diameter: 0.125~ 1 mm / Cleave Length: 8~ 16 mm

• Cladding Diameter : 80~ 150 ¼ m

• Splicing Mode : Preset 17 modes / Max 128 modes

• Heating Mode : Preset 6 modes / Max 32 modes

• Typical Splice Loss : SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB( ITU-T Standard)

• Return Loss : > > 60dB

• Lighting : 3 White LEDs

• Splicing Time : Auto mode : 9 sec / Quick mode : 7 sec

• Estimated Splice Loss : Available

• Protection Sleeve Length : 20~ 60 mm

• Heating Time : FP-03 typical heating time: 30 sec

• Results Storage : The last 2000 results

• Tension Test : 1.96~ 2.25N

• Operating Condition : Operating Altitude: 0~ 5000m above sea level, 0~ 95% relative humidity, -10~ 50° C, Max Wind 15m/ s

• Storage Condition : 0~ 95% relative humidity, -40~ 80° C

• Display : 90° bi-directional view, 5.0” Color High Resolution Display

• Fiber View & Magnification : X, Y, XY, X/ Y : 520X Magnification

• Power Supply : AC Input 100-240V, DC Input 9-14V

• No. of Splice / Heating with Battery : 4200mAh Battery Capacity, Typical 170 times ( Splice+ Heat)

• Operating Methods : Button / Touch screen

• Automatic Calibration : Automatic arc calibration by air pressure and temperature

• Electrode Life : 3500 arcs, can be extended by using an electrode grinder

• Terminal : USB2.0 / MINI USB Package:

• Fusion Splicer : View 5

• High Precision Cleaver : VF-15H

• Fiber Holder : VFH-40 / FH-SOC

• AC Adapter : JS-180300 • Cooling Tray : CG-22

• Electrode : E-50

• Manual CD : CD

• Battery Pack : LBT-40

• Power Cable : ACC-25

• Carrying Case : NBX-35

• Stripper : CFS-2
