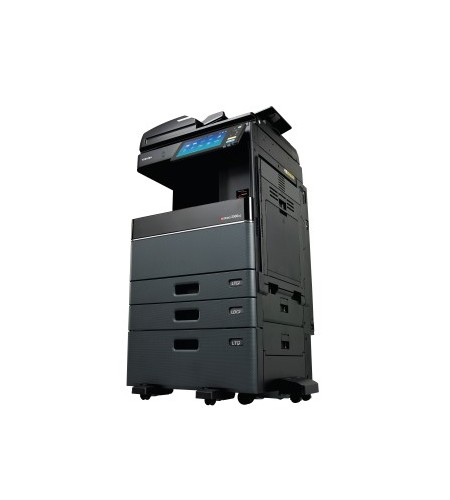

FOTOCOPY TOSHIBA ESTUDIO 5005AC

Spesifikasi Fotocopy Toshiba Estudio 5005Ac

Berikut spesifikasi Mesin Fotocopy Toshiba estudio 5005AC,:

Copying Process Indirect electrostatic photographic method
Print & Copy Speed 30/35cpm
Warm-up Time Approx. 20 seconds
Paper size / weights • 1st drawer: A3-A5R/ 60 - 256 gsm
• 2nd drawer: A3-A5R/ 60 - 256 gsm
Stack Feed Bypass A3 - 100 x 148 mm / 52 - 280 gsm
ADU A5R / 60 - 256 gsm
PFP (Opt. KD-1058) A3 - A5R / 60 - 163 gsm
LCF (Opt. KD-1059LT) A4 / 64 - 105 gsm
Optional Envelope Cassette • A4R,B5R,A5R/ 60 - 256 gsm
• 100 X 162 mm - 240 X 380 mm / 60 - 85 gsm (envelops)
Paper Capacity (STD) • Drawer x 2 : 550 sheets x 2
• Stack Feed Bypass: 100 sheets
Paper Capacity (Option) • Optional PFP: 550 sheets
• Optional drawer for PFP: 550 sheets
• Optional LCF (Pedestal type): 2000 sheets
• Optional envelope cassette: 550 sheets (only A4-R), 50mm (Envelope)
Default setting of Std. Drawers Upper: A4, Lower: A3
Max. Paper Capacity 3,200 sheets (w/Optional LCF)
Processor Intel E3825 1.33GHz(Dual Core)
Memory 4GB (Main memory + Page memory)
HDD 320 GB Toshiba Secure HDD
Dimensions eS3005AC / eS3505AC W 585 x D 640 x H 787 (mm)
Weight Approx. less than 75.5 kg *Including drum
Power Consumption Max. 2.0kW (220 - 240V)
Copy Function
Max. Original Size A3
Resolution A4
Printing (B&W) • 600 dpi x 600 dpi, 5bit
• 2400 dpi x 600 dpi (with smoothing)
Printing (Full Colour) 600 dpi x 600 dpi, 5bit
Multiple Copy Qty 1 to 999
First Copy Time (B&W) Less than 5.9/5.9/4.4 seconds
First Copy Time (Full Colour) Less than 7.8/7.8/5.7 seconds
Zoom Range (Original on glass) 25% to 400% (1% Increment)
Copy Mode • Black Mode - Text/Photo, Text, Photo, Image smoothing
• Full Colour Mode - Text/Photo, Text, Photo, Printed Image, Map
• Twin Colour Mode - Text/Photo, Text, Printed Image
• Mono Colour Mode - (applicable to 10 colours) -Text/Photo, Text, Printed Image
• Auto Colour Selection (ACS) Mode - Text/Photo, Text, Printed Image
Gradation 256steps
Print Function
Printing (B&W) • 1,200 dpi x 1,200 dpi, 2bit (PS Driver)
• 3,600 dpi x 1,200 dpi (with smoothing)(PS Driver)
Printing (Full Colour) 1,200 dpi x 1,200 dpi, 2bit (PS Driver)
Page Description Language PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG
Supported OS (Windows) • Windows Vista SP2 (32 bit)(64 bit)
• Windows 7 SP1 (32bit)(64bit)
• Windows 8/8.1 (32 bit)(64 bit)
• Windows 10 (32 bit)(64 bit)
• Windows Server 2008 SP2 (32 bit)(64 bit)
• Windows Server 2008 R2 SP1 (64 bit)
• Windows Server 2012/R2 (64 bit)
Supported OS (Macintosh) Max OS X 10.4.11, 10.5.7, 10.7.4, 10.8, 10.9, 10.10, 10.11
Supported OS (Unix Filter) Solaris ( SUN ) V10, 11, HP-UX Ver 11.iv3, AIX ( IBM ) 7.x
Supported OS (Linux) • Yes (Redhat Enterprise 5.x,6.x,7.x)
• Fedora Ver 21,22
• SuSE Linux Enterprise Server Ver.11,12
• Open SuSE Ver.13.1,13.2
• Ubuntu 14.04LTS,15.04
• Debian 7.8, 8
Interface 10/100/1000baseT (Std.), USB 2.0 High Speed, Host x 4(Front : Outside x1, Internal x 3(Opt))
Scan
Scanning Resolution (A4) • B/W 1 bit mono
• Grayscale(8bit mono)
• Colour ( or ACS) Colour depth: RGB 8bit Colour (24bit)
Scanning Speed (RADF) (A4) • 600 dpi x 600 dpi : 50 page/min
• 400 dpi x 400 dpi : 62 page/min
• 300 dpi x 300 dpi : 73 page/min
• 200 dpi x 200 dpi : 73 page/min
• 150 dpi x 150 dpi : 73 page/min
• 100 dpi x 100 dpi : 73 page/min
Image mode • B&W : (Text, Text/Photo, Photo)
• Grayscale : (No mode selection)
• Colour / ACS : (Text, Photo, Printed)
File Format • B&W : TIFF-Multi/Single page, PDF-Multi/Single-Page, XPS-Multi/Single Page, DOCX(Opt.), XLSX(Opt.), PPTX(Opt.), Searchable PDF(Opt.)
• Colour/Grayscale : TIFF-Multi/Single page, PDF-Multi/Single Page, XPS-Multi/Single Page, JPEG, Slim PDF, DOCX(Opt.), XLSX(Opt.), PPTX(Opt.), Searchable PDF(Opt.)
• ACS : TIFF-Single page, PDF-Multi/Single page, XPS-Multi/Single Page, DOCX(Opt.), XLSX(Opt.), PPTX(Opt.), Searchable PDF(Opt.)
Scan Agent Scan to File, Scan to E-mail, Scan to e-Filing, Scan to WS Scan, Scan to USB
