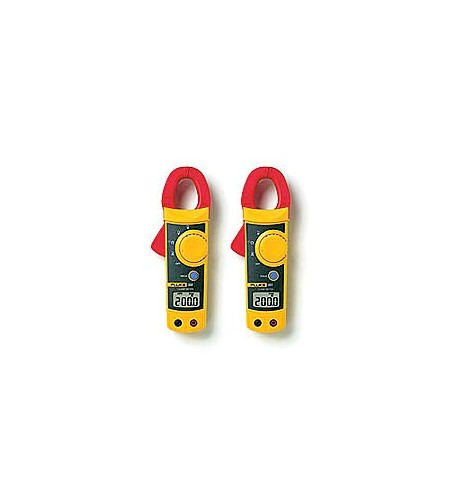

Fluke 322 Digital AC Clamp Meter
Perhatian!
Spesifikasi Fluke 322 Digital AC Clamp Meter
| Specifications | ||
| Voltage DC | Range / Resolution | 0 - 400 V / 0.1 V |
| Range | 0 - 600 V | |
| Resolution | 1 V | |
| Accuracy | 1% ± 5 counts | |
| Voltage AC | Range / Resolution | 0 - 400 V / 0.1 V |
| Range | 0 - 600 V | |
| Resolution | 1 V | |
| Accuracy | 1.2% ± 5 counts (50 - 400 Hz) | |
| AC Response | Averaging | |
| Current AC | Range / Resolution | 0 - 400 A / 0.1 A |
| Range | 0 - 40 A | |
| Resolution | 0.01 A | |
| Accuracy | 1.8% ± 5 counts (50 - 60 Hz) | |
| Accuracy | 3.0% ± 5 counts (60 - 400 Hz) | |
| AC Response | Averaging | |
| Resistance | Range / Resolution | 0 - 400 Ω / 0.1 Ω |
| Accuracy | 1% ± 5 counts | |
| Continuity | <= 30 Ω | |
| Environmental Specifications | |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -30 ºC to +60 ºC |
| Operating Altitude | 2,000 meters |
| Temperature De-rating | Add 0.1 x specified accuracy for each ºC above 28ºC or below 18ºC |
| Safety Specifications | |
| Safety Rating | IEC 1010-2-032, 600V CAT III |
| Mechanical and General Specifications | |
| Size | 190 x 63 x 35 mm |
| Weight | 230 g |
| Warranty | Two years |
| Battery Life | 100 hours typical (2 AAA carbon zinc) |
| Jaw Opening | 25 mm |
