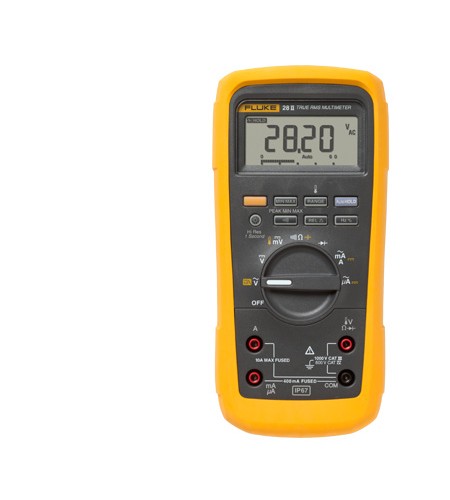

Fluke 28 II Rugged Digital Multimeter
Perhatian!
Spesifikasi Fluke 28 II Rugged Digital Multimeter
- Measure up to 1000 V AC and DC
- Measure up to 10 A (20 A for 30 seconds)
- 10,000 μF capacitance range
- Frequency to 200 kHz
- Extended AC voltage bandwidth– 15 Hz to 20 kHz
- Built in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
- Resistance, continuity and diode test
- Min/Max and average recording to capture variations automatically
- Peak min-max
- Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
- New – IP 67 waterproof & dustproof protection, completely sealed for use in harsh environments
- Designed to withstand 3 meter drop (with holster)
- Hi resolution 20,000 count display mode
- True-rms ac voltage and current for accurate measurements on non linear signals
- New – Backlit keypad buttons allow for easy visibility in lowlit areas
- Large display digits and 2 level bright white backlight for increased visibility
- Reversible holster for added protection when not in use
- Withstands hazardous 8,000 volt spikes caused by load switching and faults on industrial circuits and complies with second edition IEC and ANSI electrical safety standards
- Long battery life (800 hours)
- Relative mode to remove test lead resistance from low ohms measurements
- Auto and manual ranging for maximum flexibility
- Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
- MSHA approval
| Accuracy Specifications | ||
| DC voltage | Range | 0.1 mV to 1000 V |
| Accuracy | 0.05% + 1 | |
| AC voltage | Range | 0.1 mV to 1000 V |
| Accuracy | 0.7% + 4 | |
| DC current | Range | 0.1 μA to 10 A |
| Accuracy | 0.2% + 4 | |
| AC current | Range | 0.1 μA to 10 A |
| Accuracy | 1.0% + 2 | |
| Resistance | Range | 0.1 Ω to 50 MΩ |
| Display counts | 6000 | |
| Capacitance | 1 nF to 9999 μF | |
| Frequency | 0.5 Hz to 199.99 kHz | |
| Temperature | -200°C to +1090°C | |
| Low pass filter (Measurement on VSD’s) | Yes | |
| Compliance | CAT IV 600 V , CAT III 1000 V | |
| IP rating | IP 67 | |
| Power | Three AA batteries | |
| Battery life | 800 hours | |
| General Specifications | ||
| Display | Bar graph/backlight | Yes/Yes |
| Data storage | Peak transient capture | 250 μS |
| Min/Max/Avg | Yes | |
| Reading hold | Yes | |
| Other features | Relative readings (zero) | Yes |
| Battery type | Three AA batteries | |
| Warranty and protection | Safety rating | CAT IV 600 V/CAT III 1000 V |
| Mine safety | MSHA Approved | |
| External protection | Rubber holster | |
| Drop test | 10 feet drop test | |
| Dustproof/waterproof | Yes, IP 67 rated | |
| Warranty | Limited lifetime | |
| Size (H x W x L) with holster | 6.35 x 10.0 x 19.81 cm (2.5 x 3.93 x 7.8 in) | |
| Weight with holster | 698.5 g (1.54 lb) | |
