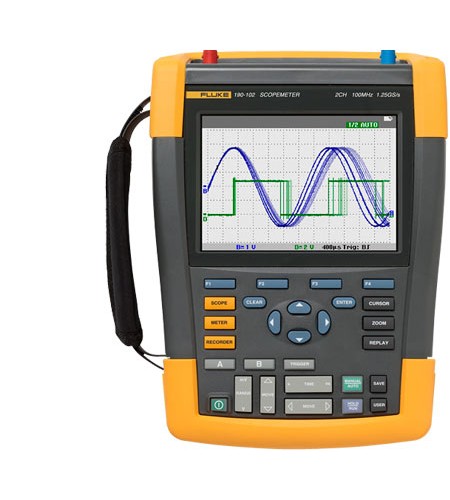

Fluke 190-102 ScopeMeter® Test Tool
Perhatian!
Spesifikasi Fluke 190-102 ScopeMeter® Test Tool
-
Specifications Bandwidth 100 MHz Number of channels 100 MHz: 2 channels Real-time sample rate 1.25 GS/s Inputs 2 scope plus DMM input Independently floating isolated inputs Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground Timebase range 5 ns - 2 min/div Input sensitivity 2 mV-100 V/div Trigger types Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle Trigger source Any scope input channel, or external via DMM input Glitch capture 8 ns Scope measurements Cursor: 7 Automatic: 30 Maximum record length ScopeRecord mode: 30,000 pts Scope mode: 10,000 pts per input Persistence Digital persistence giving analog oscilloscope-like waveform decay Waveform compare Waveform reference with automatic Pass/Fail testing DMM Specification Meter inputs (also used as External Trigger Input for the Oscilloscope Mode) 4 mm banana inputs, fully isolated from scope inputs and from scope ground Maximum resolution 5000 counts Measurements VDC, VAC rms, VAC + DC rms, Resistance, Continuity, Diode Test, Current (through clamp or shunt), Temperature °C or °F (using optional converter) Memory 2 Channel Screen + Setup: 30 Recording: 10 Display 153 mm full color LCD with fast update rate Environmental Specifications Operating temperature 0°C to 40°C Including Batteries 0°C to 50°C Excluding Batteries Storage temperature -20°C to +60°C Operating altitude Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V Safety Specifications Electrical safety 1,000V CAT III/600V CAT IV (EN61010-1) Mechanical and General Specifications Size 270 x 190 x 70 mm Weight 2.2 kg Warranty 3-years on main instrument, 1-year on accessories Li-Ion battery BP290 2400 mAh Li-ion battery up to 4 hours included standard Included Accessories VPS410 Voltage Probe Sets (one red, one blue) TL175 TwistGuard™ safety designed Test Lead Set (red and black) BC190 Battery Charger/mains Adapter BP290 2400 mAh Li-ion Battery Handstrap (affixed to instrument) Hangstrap Multi-Language User Manuals on CD-Rom FlukeView ScopeMeter® demo package (restricted functionality) USB Interface Cable Warranty Three years on main instrument, one year on accessories
