Fluke 190-062 ScopeMeter® Test Tool

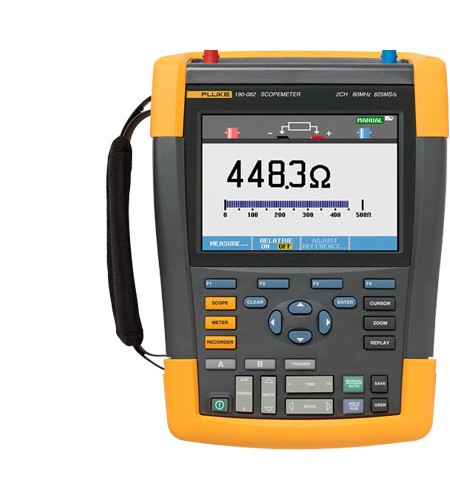

Gambar Produk
Fluke 190-062 ScopeMeter® Test Tool
Brand
FLUKE
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Dilihat Sebanyak
147 kali
Update Terakhir
14-09-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Fluke 190-062 ScopeMeter® Test Tool
The 190-062 ScopeMeter® is the one test tool you will reach for to tackle just about any troubleshooting task. They include a multimeter, TrendPlot™ and ScopeRecord™ roll paperless recorder modes and hands free operation with Connect-and-View™ triggering, and much more:
- Two electrically isolated inputs
- CAT III 1000 V / CAT IV 600 V safety rated
- 60 MHz bandwidth model
- 625 MS/s
- Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
- Dedicated 5000 Count digital multimeter in 2 Channel models
- Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
- ScopeRecord roll mode, capture waveform sample data for up to 48 hours
- TrendPlot, trend measurement readings for up to 22 days
- Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
- IP-51 rated for dust and drip proof to withstand harsh environments
- Isolated USB ports for memory devices and PC connectivity
- Li-Ion battery for extended operating timespan
- Up to 4 hours (BP290 included standard) or up to 8 hour with optional BP291
- Charge spare battery using optional external battery charger EBC290
- Easy-access battery door to make it easy to swap batteries
- A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington® lock
| Specifications | |
| Bandwidth | 60 MHz |
| Number of channels | 60 MHz: 2 channels |
| Real-time sample rate | 625 MS/s |
| Inputs | 2 scope plus DMM input |
| Independently floating isolated inputs | Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground |
| Timebase range | 10 ns - 2 min/div |
| Input sensitivity | 2 mV-100 V/div |
| Trigger types | Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle |
| Trigger source | Any scope input channel, or external via DMM input |
| Glitch capture | 8 ns |
| Scope measurements | Cursor: 7 |
| Automatic: 30 | |
| Maximum record length | ScopeRecord mode: 30,000 pts |
| Scope mode: 10,000 pts per input | |
| Persistence | Digital persistence giving analog oscilloscope-like waveform decay |
| Waveform compare | Waveform reference with automatic Pass/Fail testing |
| DMM Specification | |
| Meter inputs (also used as External Trigger Input for the Oscilloscope Mode) | 4 mm banana inputs, fully isolated from scope inputs and from scope ground |
| Maximum resolution | 5000 counts |
| Measurements | VDC, VAC rms, VAC + DC rms, Resistance, Continuity, Diode Test, Current (through clamp or shunt), Temperature °C or °F (using optional converter) |
| Memory | 2 Channel |
| Screen + Setup: 30 | |
| Recording: 10 | |
| Display | 153 mm full color LCD with fast update rate |
| Environmental Specifications | |
| Operating temperature | 0°C to 40°C Including Batteries |
| 0°C to 50°C Excluding Batteries | |
| Storage temperature | -20°C to +60°C |
| Operating altitude | Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V |
| Up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V | |
| Safety Specifications | |
| Electrical safety | 1,000 V CAT III/600 V CAT IV (EN61010-1) |
| Mechanical and General Specifications | |
| Size | 270 x 190 x 70 mm |
| Weight | 2.2 kg |
| Warranty | 3-years on main instrument, 1-year on accessories |
| Li-Ion battery | BP290 2400 mAh Li-ion battery up to 4 hours included standard |
| Included Accessories | |
| VPS410 Voltage Probe Sets (one red, one blue) | |
| TL175 TwistGuard™ safety designed Test Lead Set (red and black) | |
| BC190 Battery Charger/mains Adapter | |
| BP290 2400 mAh Li-ion Battery | |
| Handstrap (affixed to instrument) | |
| Hangstrap | |
| Multi-Language User Manuals on CD-Rom | |
| FlukeView ScopeMeter® demo package (restricted functionality) | |
| USB Interface Cable | |
| Warranty | Three years on main instrument, one year on accessories |
