Fluke 1744 Basic Power Quality Logger

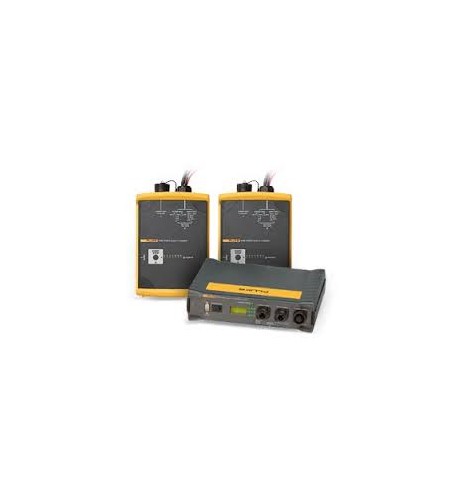

Gambar Produk
Fluke 1744 Basic Power Quality Logger
Update Terakhir
13-09-2016
Dilihat Sebanyak
63 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Fluke 1744 Basic Power Quality Logger
Features:
- Measurement of common power parameters: V, A, W, VA, VAR, PF, energy, flicker, voltage events, and THD
- Wide range current measurement accessories for direct measurement or via installed current transformers.
- Dust/water resistance: IP65 water proof
- LED Status display
- 3 seconds UPS ride-through
- Dimensions (H x W x D): 170 x 125 x 55 mm (6.9 x 5.1 x 2.2 in)
General Data
| Intrinsic error | Refers to the reference conditions and is guaranteed for two years | |
| Warranty | 2 years | |
| Recalibration interval | 2 years recommended | |
| Quality system | developed, designed, and manufactured according to DIN ISO 9001 | |
| Reference conditions | 23°C ±2 K; 74°F ±2 K , Vm = 230 V ±10%, 50 Hz ±0.1 Hz or 60 Hz ±0.1 Hz | |
| Phase sequence | L1, L2, L3 | |
| Interval length | 10 minutes | |
| Wye connection | (L1, L2, L3 to N) | |
| Power supply | 88 V ... 265 V AC | |
| Environment conditions | Working temp. range | -10°C to 55°C; 14°F to 131°F |
| Operating temp. range | 0°C to 35°C; 32°F to 95°F | |
| Storage temp. range | -20°C to 60°C; -4°F to 140°F | |
| Reference temp. range | 23°C ±2 K; 74°F ±2 K | |
| Relative humidity | Class C2 acc. IEC 60654-1 | |
| Housing | robust, fully insulated housing and accessories | |
| Protection type | IP65 as per EN 60529 | |
| Safety | IEC/EN 61010-1 600 V CAT III, 300 V CAT IV, pollution degree 2, double insulation | |
| Type test voltage | 5.2 kV rms, 50 Hz / 60 Hz, 5 s | |
| EMC | Emission | IEC/EN 61326-1, EN55022 |
| Immunity | IEC/EN 61326-1 | |
| Voltage and Current Measurement | ||
| Input voltage | Input range VI P-N | max 480 V AC |
| Input range VI P-P | max 830 V AC | |
| Max. overload voltage | 1.2 VI | |
| Input range selection | By job programming | |
| Connections | P-P or P-N, 1- or 3-phase | |
| Nominal voltage VN | ≤ 999 kV with PTs and ratio | |
| Input resistance | App. 820 kΩ per chan. Lx-N Single phase (L1 or A, L2 or B, L3 or C connected): app. 300 kΩ | |
| Intrinsic uncenrtainty | 0.1% of VI | |
| Voltage transformer | Ratio: < 999 kV / VI | |
| Ration selection | By job programming | |
| Current input with flexi set | Input ranges II L1 or A, L2 or B, L3 or C, N | 15 A / 150 A / 1500 A / 3000 A AC |
| Measuring range | 0.75 A … 3000 A AC | |
| Intrinsic uncertainty | < 2% of II | |
| Position influence | Max. ±2% of measured value – for distance conductor to meas. head > 30 mm | |
| Stray field influence | < ±2 A AC for Iext = 500 A AC and distance to measuring head > 200 mm | |
| Temperature coefficient | < 0.05% / K | |
| Current transformer | Ratio ≤ 999 kA / II | |
| Ratio selection | By job programming | |
| Connection | 3-phase, 3-phase +N, 2 phase L1 or A and L3 or C (2 W-meter-method) 7 pole connector | |
| Current input for clamp | Input ranges II L1 or A, L2 or B, L3 or C, N |
0.5 V nominal (for II) 1.4 Vpeak |
| Intrinsic uncertainty | < 0.3% of II | |
| Max. overload | 10 V AC | |
| Input resistance | App. 8.2 kΩ | |
| Current transformer | Ratio Ω 999 kA / II | |
| Power systems | Delta, 2-Element Delta, Wye, Single Phase, Split Single Phase | |
| Logger | ||
| Power supply | Functional range | 88 V to 660 V absolute, 50 Hz / 60 Hz |
| 100 V to 350 V DC Internal fuse: 630 mA T | ||
| Power consumption | 5 Watts | |
| Ride through | 3 sec Capacitor | |
| Fuse | Power supply fuse can be replaced in service facility only. Supply can be connected in parallel to measuring inputs (up to 660 V) | |
| Display, indicators | LEDs for status and voltage levels | |
| Memory | Capacity 8 MB Flash-EPROM | |
| Intervals | A function > 12000 intervals for > 85 days with 10 min intervals | |
| P function > 30000 intervals for > 212 days with 10 min intervals | ||
| Events | > 13000 | |
| Memory model | linear, circular | |
| Interface | RS 232, 9600...115 000 Baud, automatic Baud rate selection, 3-wire communication | |
| Dimensions | 170 x 125 x 55 mm (69 x 51 x 22 in) | |
| Weight | approx. 2 kg | |
| Measurement | A/D converter | 16 bit, sample rate: 10.24 kHz |
| Anti-aliasing filter | FIR-Filter, fc = 4.9 kHz | |
| Frequency response | Uncertainty < 1% of Vm for 40 Hz to 2500 Hz | |
| Interval length | 1, 3, 5, 10, 30 s, 1, 5, 10, 15, 60 minutes | |
| Averaging time for Min/max values | ½, 1 mains period, 200 ms, 1, 3, 5 s | |
| Time base | Resolution: 10 ms (at 50 Hz), deviation: 2 s/day at 23°C; 74°F ±2 K | |
