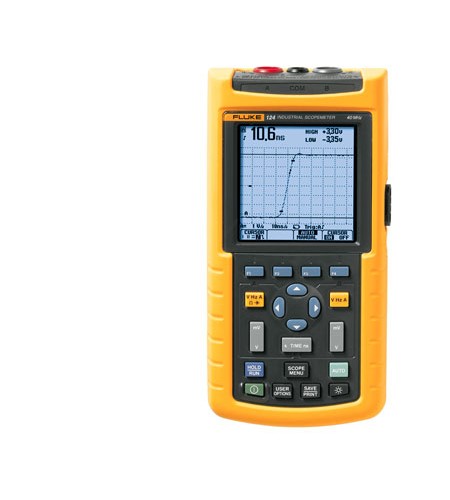

Fluke 124/S Industrial ScopeMeter®
Perhatian!
Spesifikasi Fluke 124/S Industrial ScopeMeter®
| Specifications | |
| Oscilloscope Bandwidth | 40 MHz |
| Dual Input True RMS Meter | VDC, VAC, VAC + VDC, Ohms,Continuity, Diode-test Current, °C, °F, Capacitance, dBV, dBM, Crest Factor, Touch Hold and Zeroset |
| TrendPlot Recording | Automatic vertical scaling and time compression Display the actual, MIN, MAX and AVG reading |
| Cursors | ΔT, 1/ΔT, V, ΔV, rise- and fall time |
| Real-time Sample Rate | 25 MS/s |
| Equivalent Sampling Rate | Up to 2.5 GS/s |
| Inputs and Digitizers | 2 |
| Timebase Range | 20 ns - 1 min/div |
| Input Sensitivity | 5 mV - 500 V/div |
| Trigger Types | Connect-and-View™, Free Run, Single Shot, Edge, Video, External |
| Glitch Capture | 40 ns |
| Scope Measurements | Automatic measurements: 26 (all instruments) |
| Maximum Record Length | 512 min/max pts per input |
| Memory | 20 screens and setups |
| Environmental Specifications | |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to +60°C |
| Operating Altitude | 3,000 m |
| Safety Specifications | |
| Electrical Safety | 600 V CAT III (EN61010-1) |
| Mechanical and General Specifications | |
| Size | 232 x 115 x 50 mm |
| Weight | 1.2 kg |
| Warranty | 3-years on main instrument 1-year on accessories |
| Battery Life | 7 hrs using NiMH |
| RS232/USB Interface | Optically isolated via optional PM9080 or OC4USB for interfacing to Printer or PC |
