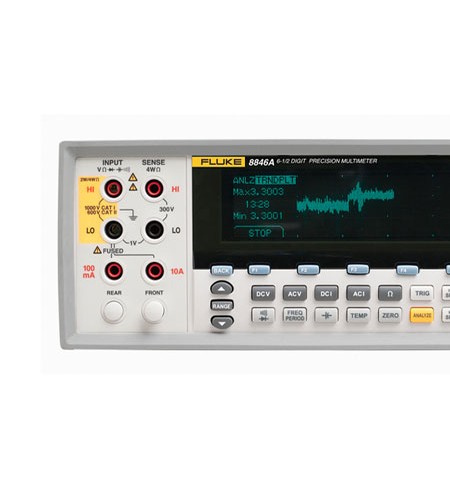

FLUKE 8845A/8846A 6.5 Digit Precision Multimeters
Perhatian!
Spesifikasi FLUKE 8845A/8846A 6.5 Digit Precision Multimeters
| Technical Specifications | ||
| Display | VFD dot matrix | |
| Resolution | 6.5 Digits | |
| V DC | Range | 100 mV to 1000 V |
| Max. resolution | 100 nV | |
| Accuracy | 8845A: 0.0035 + 0.0005 (% measurement + % of range) 8846A: 0.0024 + 0.0005 (% measurement + % of range) |
|
| V AC | Range | 8845A: 100 mV to 750 V 8846A: 100 mV to 1000 V |
| Max. resolution | 100 nV | |
| Accuracy | 8845A: 0.06 + 0.03 (% measurement + % of range) 8846A: 0.06 + 0.03 (% measurement + % of range) |
|
| Frequency | 3 Hz to 300 KHz | |
| Resistance | 2 x 4 Wire | Yes |
| Range | 8845A: 100 Ω to 100 MΩ 8846A: 10 Ω to 1 GΩ |
|
| Max. resolution | 8845A: 100 μΩ 8846A: 10 μΩ |
|
| Accuracy | 8845A: 0.010 + 0.001 (% measurement + % of range) 8846A: 0.010 + 0.001 (% measurement + % of range) |
|
| A DC | Range | 100 μA to 10 A |
| Max. resolution | 100 pA | |
| Accuracy | 0.050 + 0.005 (% measurement + % of range) | |
| A AC | Range | 8845A: 10 mA to 10 A 8846A: 100 mA to 10 A |
| Max. resolution | 8845A: 10 nA 8846A: 100 pA |
|
| Accuracy | 0.10 + 0.04 (% measurement + % of range) | |
| Frequency | 3 Hz to 10 kHz | |
| Freq/period | Range | 8845A: 3 Hz to 300 kHz 8846A: 3 Hz to 1 MHz |
| Max. resolution | 1 μHz | |
| Accuracy | 0.01% | |
| Continuity / diode test | Yes | |
| Capacitance | Range | 8846A: 1 nF to 0.1 F |
| Max. resolution | 8846A: 1 pf | |
| Accuracy | 8846A: 1% | |
| Temperature | Type | 8846A: Platinum RTD |
| Range | 8846A: -200°C to +600° | |
| Max. resolution | 8846A: 0.01° | |
| Accuracy | 8846A: 0.06° | |
| Math functions | NULL, Min/Max/Average, Std Dev | |
| dB/dBm | Yes | |
| Advanced functions | Statistics/histogram | Yes |
| Trendplot | Yes | |
| Limit test | Yes | |
| Input output | USB memory | 8846A: USB memory drive port |
| Real time clock | 8846A: Yes | |
| Interfaces | RS 232, IEE-488.2, Ethernet, USB (with optional adaptor) | |
| Programming languages/modes | 8846A: SCPI (IEEE-488.2), Agilent 34401A, Fluke 45 | |
| General Specifications | ||
| Weight | 3.6 kg (8.0 lbs) | |
| Dimensions | 88 x 217 x 297 mm (3.46 x 8.56 x 11.7 in) | |
| Calibration documentation | 17025 accredited report of calibration included | |
| Safety | Designed to comply with IEC 61010-1:2000-1, UL 61010-1A1, CAN/CSA-C22.2 No. 61010.1, CAT I 1000V/CAT II 600V | |
| Warranty | Three years | |
