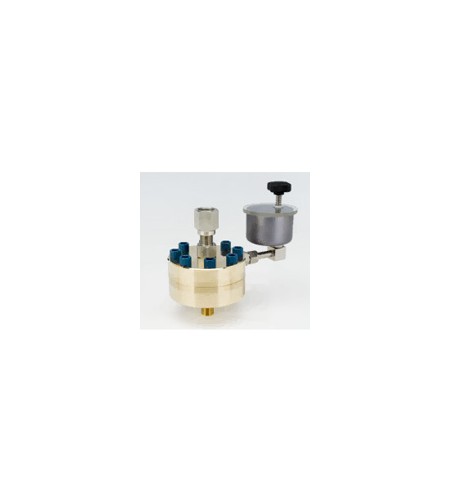

FLUKE 5521 and 5522 Liquid to Liquid Separators
Perhatian!
Spesifikasi FLUKE 5521 and 5522 Liquid to Liquid Separators
These instruments connect directly to the test port of a hydraulic deadweight tester and by means of a flexible diaphragm separate the fluids thus protecting the calibrator from contamination.
FEATURES
- 5521-For pressures to 10,000 psi (700 bar)
- 5522-For pressures to 7,000 psi (480 bar) for Skydrol or other aggressive fluids
| Specifications | |
| Pressure Range | 5521: 0 to 10,000 psi (700 bar) 5522: 0 to 7,000 psi (480 bar) for Skydrol and other aggressive fluids |
| Instrument Size (W x H) | 4 x 6 in (100 x 150 mm) |
| Instrument Weight | 7.5 lb (3.5 kg) |
| Test Port Adapter | Uses adapters supplied with calibrator |
| Calibrator Connection | 3/8 BSP male (mating adapter supplied) |
| Body Material | Aluminum bronze |
| Diaphragm | 5521- Viton® 5522-Ethylene Propylene |
| Reservoir Material | Hard-anodized aluminum |
| Model Name | Description | |
|---|---|---|
| P5521 and P5522 | 5521 and 5522 Liquid to Liquid Separators | |
|
Liquid-to-Liquid Separator |
||
