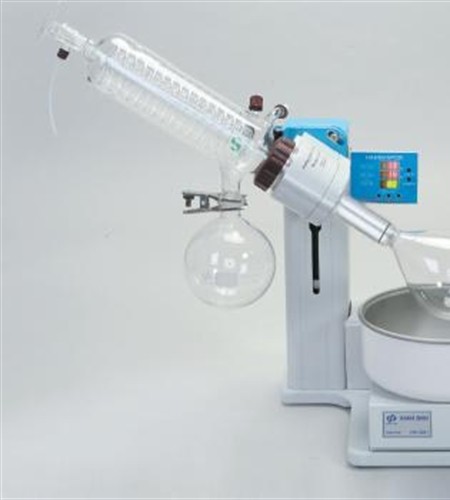

HAHN SHIN Rotary Evavorator HS-2005S(CE)

• Dimension(W×D×H) : 720×340×510mm
• Power source : AC 220V 50/60Hz 2.5A
• Weight : 20kg
• Distinguished Features
 6 different types of flasks are attachable (from 50ml to 3000㎖)
 Digital speed control
 Digital R.P.M Display / Speed control range : 20~280 R.P.M
 Slant type condenser
 Digital interior temperature measure and display
 (It catches the temperature changes caused by the interior pressure
 drops)
 Motorized UP- DOWN control switch
 Easy to utilize standard distillation solution

 Auto timer function

 Autonomous condenser lifting function after a complete shut down

of the machine

Included Water bath HS-3001(PTFE coating)
• Heater : 1000W / Bath Material : SUS304 / Weight : 2.8kg
• Bath Dimension(φ×H)mm : 245×120(Capacity:4.3ℓ)
• Required Power Source : AC 220V 50/60Hz 3.5A
• Distinguished Features
 If the amount of water goes down under the certain threshold
 in the heating bath, the system automatically turns off its power
 for the safety purpose
• Temp.Control range : Amb.~180℃
• Temp.Setting/Display : Digital control(controlled by the main controller)
※ Double jacketed bath body (Safe to touch)
Included vacuum controller
• Vacuum range : 0~760mmHg
