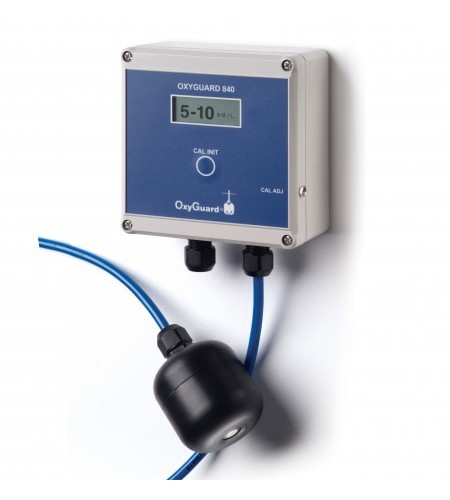

PARTECH 840 Loop Powered Dissolved Oxygen Transmitter
Perhatian!
Spesifikasi PARTECH 840 Loop Powered Dissolved Oxygen Transmitter
| Physical | |
|---|---|
| Dimensions (hxwxd) | Transmitter: 121, 121, 60 mm Sensor: 58 mm Diameter x 56 mm Long |
| Weight | Transmitter: 1 kg Sensor: 0.4 kg (inc 5 metres of cable) |
| Protection Class | Transmitter: IP65 Sensor: IP68 |
| Enclosure Material | Transmitter: ABS Sensor: Polyoxymethylene (POM) |
| Cable Entry | 2x PG9 |
| Cable Length | 10 metres standard |
| Electrical | |
| Power Supply | 15 to 35 VDC Loop Power |
| Environmental Data | |
| Operating Temperature | Transmitter: -20 to 60ºC Sensor: 0 to 50ºC |
| Storage Temperature | Transmitter: -20 to 60ºC Sensor: -20 to 50ºC |
| Location | Indoor/Outdoor |
| User Interface | |
| Display | 3 1/2 Digit |
| Setup | via Dip Switches |
| Units of Measurement | mg/l, ppm, %Sat |
| Output Signals | |
| Analogue Output | 4-20 mA Max load 50 ohm @ 15VDC, 1000 ohm @ 35VDC |
| Relay Outputs | None |
