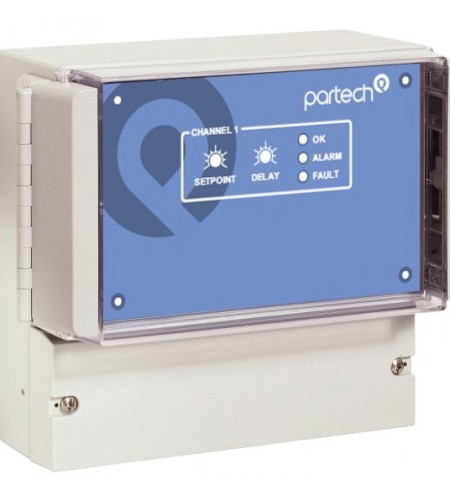

PARTECH 8100 and 8200 Sludge Blanket Detectors
Perhatian!
Spesifikasi PARTECH 8100 and 8200 Sludge Blanket Detectors
| Physical | |
|---|---|
| Dimensions (hxwxd) | 160 x 195 x 105 mm |
| Weight | 1 kg |
| Protection Class | IP65 |
| Enclosure Material | ABS |
| Cable Entry | 4 x M20 (cable 5 to 10 mm) |
| Cable Core Size | Max Conductor Size 2.5 mm² |
| Electrical | |
| Power Supply | 100 to 240VAC 50/60 Hz 9 to 36VDC option vailable |
| Power Rating | 8 W |
| Environmental Data | |
| Operating Temperature |
Monitor: -20 to 60ºC Sensor: 0-40°C |
| Location | Indoor/Outdoor |
| User Interface | |
| Local Annunciation | Green LED for Normal Red LED for Blanket Alarm Orange LED for Fault |
| Adjustment | 5 - 95% of Sensor Range |
| Response Time | 1 to 90 Seconds |
| Relays | |
| Number | 2, 1 Blanket High, 1 System Fault |
| Type | SPCO |
| Rating | 5 A @ 230VAC, 5A@125VDC |
