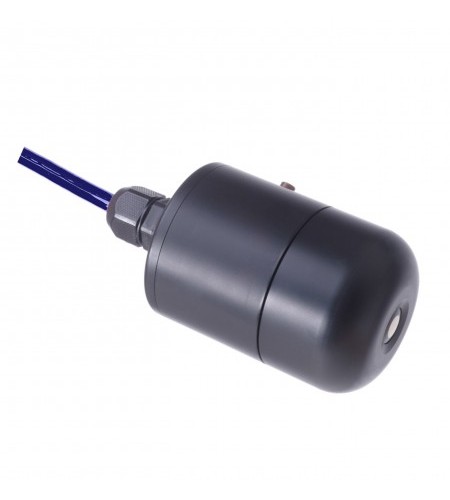

PARTECH Galvanic Dissolved Oxygen Sensor
Perhatian!
Spesifikasi PARTECH Galvanic Dissolved Oxygen Sensor
| Physical | |
|---|---|
| Dimensions (hxwxd) | Ø58mm, 88 mm long |
| Weight | 0.5 kg |
| Protection Class | IP68 |
| Enclosure Material | Polyoxymethylene (POM) with HDPE membrane |
| Cable Entry | Integral Cable Gland |
| Cable Length | 10 metres standard, 100 metres maximum |
| Interface to Monitor | |
| Power Supply | 12 VDC from Monitor |
| Sensor Output | ModTechw², RS485 |
| Environmental Data | |
| Operating/Storage Temperature | 0 to 50ºC |
| Location | Indoor/Outdoor |
| Pressure Rating | 5 Bar |
| Maintenance | |
| Service | No routine service Periodic cleaning is required at a frequncy determined by the application. Our self cleaning shaft option is highly recommended, this eliminates manual cleaning between calibrations. |
| Calibration | The sensor is inherently stable, calibration should be carried out to suit the application. Our recommendation is every 6 months. |
