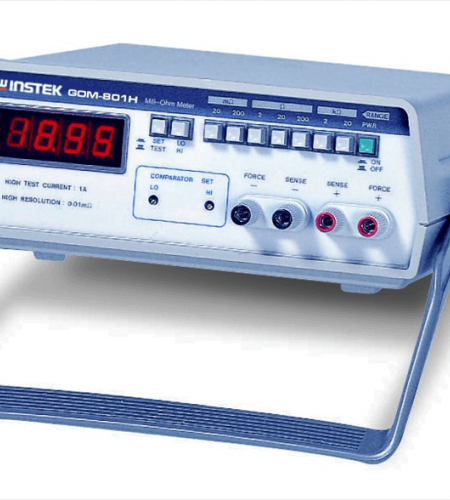

GW INSTEK GOM-801H
Perhatian!
Spesifikasi GW INSTEK GOM-801H
| TEST RANGE | |
| 20, 200mΩ, 2, 20, 200Ω, 2k, 20kΩ 7 Ranges | |
| TEST CURRENT (Test Voltage 0.2V) | |
| 20mΩ/200mΩ: 1A 2Ω: 0.1A 200Ω: 1mA 2kΩ: 100uA 20kΩ: 10uA |
|
| ACCURACY | |
| Measurement | 20mΩ: ± (0.2% rdg + 6 digits) 200mΩ ~ 20kΩ: ± (0.2% rdg + 4 digits) |
| Setting | ± (0.2% + 6 digits) |
| RESOLUTION | |
| 0.01Ω, 0.1Ω, 1Ω, 10Ω, 100mΩ, 1Ω, 10Ω | |
| COMPARATOR | |
| HI, LO settable | |
| DISPLAY | |
| 3 1/2 digits 0.5" LED display HI, GO, LO indicator |
|
| POWER SOURCE | |
| AC 100V/120V/220V/230V±10% , 50/60Hz | |
| DIMENSIONS & WEIGHT | |
| 230(W) x 95(H) x 280(D)mm Approx. 2 kg |
|
Features
-
3 1/2 Digits 0.5" LED Display
-
Measures from 20mΩ ~ 20kΩ in 7 Ranges
-
1A High Test Current
-
High Resolution 10uΩ
-
Hi/Lo Comparator Indicator and Buzz Alarm
