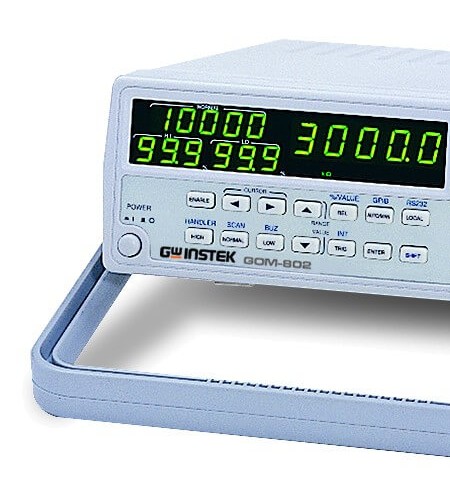

GW INSTEK GOM-802
Perhatian!
Spesifikasi GW INSTEK GOM-802
| DISPLAY | |
| 30000 Counts | |
| RESISTANCE | |
| Range/Test Current | 30mΩ/1A, 300mΩ/100mA, 3Ω/100mA, 30Ω/10mA, 300Ω/1mA, 3kΩ/100uA, 30kΩ/100uA, 300kΩ/10uA and 3MΩ/1uA 9 ranges |
| Accuracy | 30mΩ: ±1% reading + 6 digits 300mΩ: ±0.05% reading + 6 digits 3Ω: ±0.05% reading + 3digits 30Ω~3MΩ: ±0.05% reading + 2 digits |
| Resolution | 1uΩ, 10uΩ, 100uΩ, 1mΩ, 10mΩ, 100mΩ, 1Ω, 10Ω, 100Ω |
| TEMPERATURE | |
| Range | -50°C ~ 100°C |
| Accuracy | -10°C ~ -40°C : 0.3%+0.5°C Other : 0.3%+1.0°C |
| Resolution | 0.1°C |
| FUNCTION | |
| Hi/Lo, Go/No-Go, Trigger, Actual, %, Diode, REL, Temp, TC for Transformer | |
| MEASURING RATE | |
| 7 measuring/sec at 30,000 counts 30 measuring/sec at 3,000 counts |
|
| MEMORY | |
| 20 Sets | |
| INTERFACE | |
| Standard: Handler, Scan (same connector) Option: RS-232C+GPIB |
|
| POWER SOURCE | |
| AC 100V / 120V / 220V / 230V±10%, 50/60Hz | |
| DIMENSIONS & WEIGHT | |
| 251(W)×91(H)×291(D) mm Approx. 3kg |
|
Features
-
30000 Counts Display
-
High Accuracy 0.05%
-
Hi/Lo Comparator and Limit Percent Setting
-
Measurement of REL, Actual and % Value
-
Continuous or Triggered Measurement Mode
-
Temperature Compensation and Measurement
-
Four-Terminal Measurement Technique
-
Auto-Recall Last Setting After Power OFF and ON Again
-
Alarm Setting for PASS/FAIL
-
Scan, Handler Interface(Standard)
-
Manual or Autoranging
-
RS-232C+GPIB (Option)
