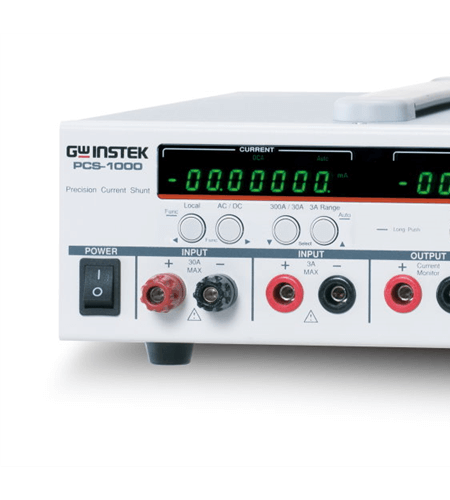

GW INSTEK PCS-1000

Brand

GW- Instek

Pengiriman

3 Hari Setelah Pembayaran

Lokasi

Jawa Barat - Bekasi - Bekasi Utara

Harga

Kontak Kami

Dilihat Sebanyak

185 kali

Update Terakhir

22-08-2016

+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi GW INSTEK PCS-1000

PCS-1000 is a High-Precision D.C. and A.C. Current Shunt Meter which carries built-in current shunts and high-accuracy current measurement circuits. PCS-1000 not only measures current in five current levels ─300A, 30A, 3A, 300mA and 30mA, but also measures voltage at 6 1/2-digit resolution simultaneously. This unique feature puts PCS-1000 in an unprecedented position among all the shunt meters available in the market today. After a long time operation, PCS-1000 is able to maintain high measurement accuracy in spite of the temperature variation.

Features

6 1/2 Digit measurement resolution
Dual measurement for Voltage and Current
AC&DC Current measurement range: 30mA/300mA/3A/30A/300A(Max)
AC Voltage measurement range: 200mV/2V/20V/200V/600V(Max)
DC Voltage measurement range: 200mV/2V/20V/200V/1000V(Max)
Auto zero circuit
Standard Interfaces: USB, GPIB

Model	PCS-1000
DC Voltage Characteristics
			23℃±5℃(1 Year)	Temperature Cofficient / ℃
Range	200.0000mV		0.0050+0.0035	0.0005+0.0005
	2.000000V		0.0050+0.0010	0.0005+0.0001
	20.00000V		0.0050+0.0010	0.0005+0.0001
	200.0000V		0.0050+0.0010	0.0005+0.0001
	1000.000V		0.0050+0.0020	0.0005+0.0001
Accuracy	±(% of reading +% of Range); Voltage input Resistance:10MΩ for all DC Voltage ranges
DC Current Characteristics
		Burden Voltage	23℃±5℃(1 Year)	Temperature Cofficient / ℃
Range	30.00000mA	<0.4V	0.01+0.005	0.001+0.002
	300.0000mA	<0.5V	0.01+0.005	0.001+0.002
	3.000000A	<0.8V	0.01+0.005	0.001+0.002
	30.00000A	<0.8V	0.01+0.005	0.001+0.002
	300.0000A	<0.8V	0.02+0.005	0.001+0.002
Accuracy	±(% of reading +% of Range)
True RMS AC Voltage Characteristics
		Frequency	23℃±5℃(1 Year)	Temperature Cofficient / ℃
Range	200.0000mV	45Hz-2KHz 2KHz-10kHz 10kHz-20kHz	0.5+0.05 1.0+0.05 2.0+0.10	0.005+0.005
	2.000000V			0.005+0.005
	20.00000V			0.005+0.005
	200.0000V			0.005+0.005
	600.000V			0.005+0.005
Accuracy	±(% of reading +% of Range) ℃
True RMS AC Current(AC+DC) Characteristics
Range	30.00000mA	45Hz-2KHz 2KHz-10kHz	0.5+0.05 1.0+0.05	0.03+0.006
	300.0000mA			0.03+0.006
	3.000000A			0.03+0.006
	30.00000A	45Hz-400Hz	0.5+0.05	0.03+0.006
	300.0000A	45Hz-400Hz	0.5+0.05	0.03+0.006
Accuracy	±(% of reading +% of Range)
Current Monitor Accuracy
	Shunt Value	DC Accuracy	AC Accuracy ≦ 400Hz	Max Input DC/ AC RMS
Range	10Ω	0.01%	0.1%	30mA
	1Ω	0.01%	0.1%	300mA
	0.1Ω	0.01%	0.1%	3A
	0.01Ω	0.01%	0.1%	30A
	0.001Ω	0.02%	0.1%	300A
General
Power Supply	100V/120V/220V/240V±10%
Power Line Frequency	50/60Hz
Operating Environment	Full Accuracy for 0℃ to 50℃, Full accuracy to 80% R.H. at 40℃
Storage Environment	-40℃ to 70℃
Power Consumprion	Max 35VA
Dimensions	210 mm (W) x 80mm(H) x 390 mm(D)
Weight	Approx 6kg
