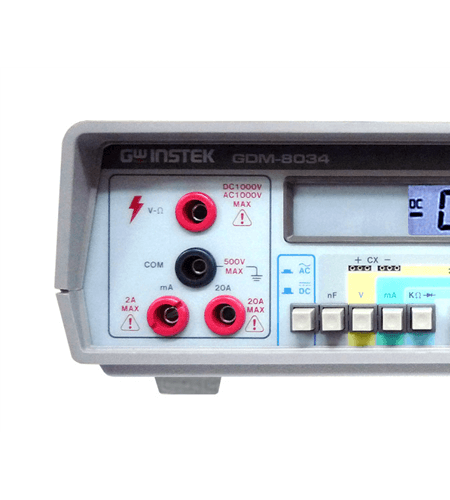

GW INSTEK GDM-8034
Perhatian!
Spesifikasi GW INSTEK GDM-8034
- 8 Functions AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode Test and Audible Continuity Beeper
-
High Voltage 1000V and 20A Current Range
-
0.5% Basic DCV Accuracy
-
LCD Display
| DC VOLTAGE | |
| Range | 200mV, 2V, 20V, 200V, 1000V 5 ranges |
| Accuracy | +(0.5% rdg + 1 digit) |
| Input Impedance | 10MΩ |
| AC VOLTAGE | |
| Range | 200mV, 2V, 20V, 200V, 750V 5 ranges |
| Accuracy | 40Hz ~ 500Hz+(1% rdg + 4 digits) |
| Input Impedance | 10MΩ |
| DC CURRENT | |
| Range | 200μA, 2mA, 20mA, 200mA, 2A, 20A 6 ranges |
| Accuracy | 200μA ~ 200mA+(0.5% rdg + 1 digit) 2A ~ 20A+(1% rdg + 3 digits) |
| AC CURRENT | |
| Range | 200μA, 2mA, 20mA, 200mA, 2A, 20A 6 ranges |
| Accurancy | 40Hz ~ 500Hz in all ranges 200μA ~ 200mA+(1% rdg + 4 digits) 2A ~ 20A+(1.5% rdg + 2 digits) |
| RESISTANCE | |
| Range | 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ 6 ranges |
| Accuracy | 200W~ 2MΩ+(0.75% rdg + 1 digit) 20MΩ+(1.5% rdg + 5 digits) |
| CAPACITANCE | |
| Range | 2nF, 20nF, 200nF, 2μF, 20μF 5 ranges |
| Accuracy | +(2% rdg + 4 digits) |
| Test Freq. | 300Hz +5% |
| DIODE TEST | |
| Test Current | Max. 2.5mA |
| Open Voltage | Max. 3.2V |
| CONTINUITY BEEPER | |
| Description | Buzzer sounds when conductance < 30Ω |
| Test Current | Max. 2.5mA |
| Open Voltage | Max. 3.2V |
| DISPLAY | |
| 0.5" LCD display | |
| POWER SOURCE | |
| AC 110V/220V +15%, 50/60Hz | |
| DIMENSIONS & WEIGHT | |
| 245(W) × 95(H) × 280(D) mm Approx. 2kg |
|
