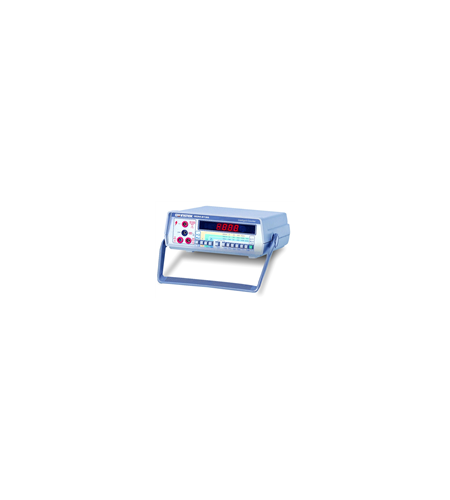

GW INSTEK GDM-8135
Perhatian!
Spesifikasi GW INSTEK GDM-8135
- Vast Measuring Functions : AC/DC Voltage, AC/DC Current, Resistance, Diode Test and Continuity Beeper
-
Large 0.5" Red LED Display
-
High Voltage 1000V and 20A Current Range
-
All Range with Protection Circuit
-
0.1% DCV Accuracy
-
Auto Zero Circuit
| DC VOLTAGE | |
| Range | 200mV, 2V, 20V, 200V, 1000V 5 ranges |
| Accuracy | +(0.1% rdg + 1 digit) |
| Input Impedance | 10MΩ |
| AC VOLTAGE | |
| Range | 200mV, 2V, 20V, 200V, 1000V 5 ranges |
| Accuracy | 200mV ~ 20V 3 ranges: 40Hz ~ 1kHz+(0.5% rdg + 1 digit) 1kHz ~ 10kHz+(1% rdg + 1 digit) 10kHz ~ 20kHz+(2% rdg + 1 digit) 20kHz ~ 40kHz+(5% rdg + 1 digit) 200V range: 40Hz ~ 1kHz+(0.5% rdg + 1 digit) 1kHz ~ 10kHz+(1%rdg + 1 digit) 1000V range: 40Hz ~ 1kHz+(0.5% + 1 digit) |
| Input Impedance | 10MΩ |
| DC CURRENT | |
| Range | 200μA, 2mA, 20mA, 200mA, 2A, 20A 6 ranges |
| Accuracy | 200μA ~ 200mA 4 ranges:+(0.2% rdg + 1 digit) 2A ~ 20A 2 ranges：+(0.5% rdg + 1 digit) |
| AC CURRENT | |
| Range | 200μA, 2mA, 20mA, 200mA, 2A, 20A 6 ranges |
| Accuracy | 200μA ~ 200mA 4 ranges 40Hz ~ 1kHz：+(0.5% rdg + 1 digit) 1kHz ~ 10kHz：+(1% rdg + 1 digit) 10kHz ~ 20kHz：+(2% rdg + 1 digit) 2A ~ 20A 2 ranges, 40Hz ~ 2kHz+(1% rdg + 2 digits) |
| RESISTANCE | |
| Range | 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ 6 ranges |
| Accuracy | 200Ω~ 2MΩ 5 ranges：+(0.2% rdg + 1 digit) 20MΩ range：+(0.5% rdg + 1 digit) |
| DIODE TEST | |
| Test Current | Max. 1mA |
| Open Voltage | Max. 13V |
| CONTINUITY BEEPER | |
| Description | Buzzer sounds if conductance less than 10Ω |
| Test Current | Max. 1 mA |
| Open Voltage | Max. 13V |
| DISPLAY | |
| 0.5" LED display | |
| POWER SOURCE | |
| AC 100V/120V/220V/230V +10%, 50/60Hz | |
| DIMENSIONS & WEIGHT | |
| 245(W) × 95(H) × 280(D) mm Approx. 2kg |
|
