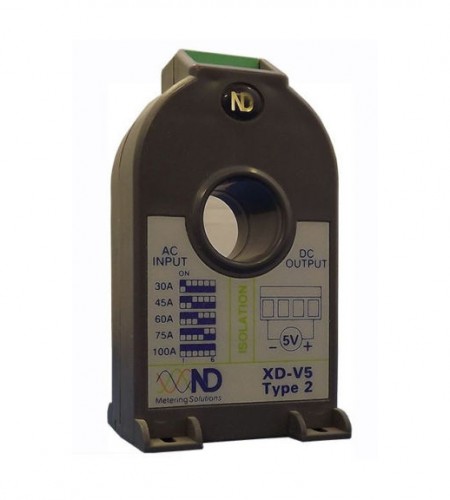

CAMAX Northern Design XD Current Transducer

Product Details

Fully isolated direct measuring AC Current Transducers available with 2 different output signals:

• XD-I420 4 - 20mA, Loop powered.
• XD-5V 0 - 5V dc, Self powered.

Plate mounting (with a DIN Rail mount option) and an accuracy typically better than 0.5%. These transducers provide a low cost solution to most applications requiring measurement of ac current.

There are 3 models of each type of output signal, covering a range from: 5A to 250 Amp (dip-switch selection of scale)

• Type 1: 0 - 5, 10, 15, 20 or 25 Amp (0 - 30A range at reduced accuracy) 10mm maximum cable diameter
• Type 2: 0 - 30, 45, 60, 75 or 100 Amp (0 - 15A range at reduced accuracy) 19mm maximum cable diameter
• Type 3: 0 - 100, 150, 200 or 250 Amp (0 - 50A range at reduced accuracy) 19mm maximum cable diameter

Product Specification

• XD TYPE 1 0 - 5, 10, 15, 20, 25 or 30A*
• XD TYPE 2 0 - 15*, 30, 45, 60, 75 or 100A
• XD TYPE 3 0 - 50*, 100, 150, 200 or 250A
• DRIVE Current Input 0 - 1 or 0 - 5A
• DRIVE Voltage Input 0 - FS Volts (min 60V, max 600V)

• 45 - 65 Hz standard

• Current IN, Voltage OUT 0 - 120% Current IN, Current OUT 0 - 100%
• Voltage IN, Voltage OUT 0 - 120% (max 600V Input) Voltage IN, Current OUT 0 - 100%

• XD-5V 0 - 5V dc DRIVE xV
• 0 - 1V dc XD-I420 & DRIVE xI 4 - 20mA

• Current Input 2 x FS Current continuous
• 15 x FS Current for 10 sec
• Voltage Input 1.2 FS Volts continuous
• 1.5 FS Volts for 10 sec

• ±1.0% FS Typically <±0.5% XD ranges marked *are at reduced accuracy

• Voltage Output Not required
• XD-I420 24V dc, max 36V dc
• DRIVE xI 24V dc nominal

• Voltage Output 250kW minimum
• 4 - 20mA Output 250W nominal, 600W max

• XD 4kV 50Hz 1 sec test
• DRIVE 2kV 50Hz 1 sec test

• 1 second nominal

• Operating Temperature 0˚C to +60˚C Storage Temperature -20˚C to
• +70˚C
• Humidity 95%RH non-condensing
