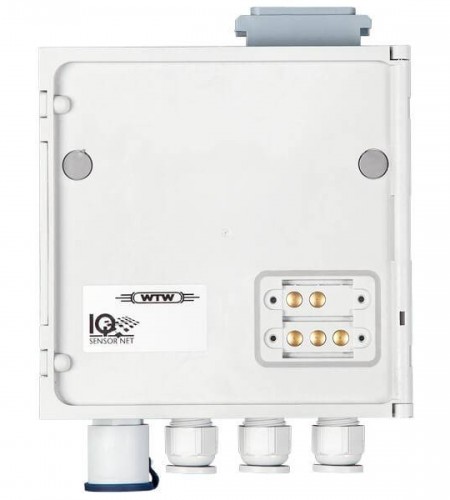

WTW MIQ modules for outputs, inputs and communication
Perhatian!
Spesifikasi WTW MIQ modules for outputs, inputs and communication
- Can be combined in any configuration thanks to the modular system - no matter where, when or how
- Simple installation - the stacking technique of the IQ Sensor Netsaves additional installation materials, work effort and time
- Integrated lightning protection ensures high operational safety in any weather
Depending on the requirements of your measuring situation, the suitable modules will be available for you to combine them as needed: For example, you will receive digital output modules for the MODBUS or PROFIBUS connection.
The analog output modules will expand your IQ Sensor Net by six relay or power outputs. We also offer a combined module with three power and three relay outputs. The analog output modules can be combined as required, up to a max. of 48 output channels (total of power outputs and relays in the system 2020).
With the modle MIQ/IC2, you will expand the system by two power inputs and you will also allow the connection of separate monitors and analyzers into the IQ Sensor Net.
Variations
| Model | Description | Order no. |
|---|---|---|
| MIQ/2-MOD | Module IQ with MODBUS RTU / RS 485 connection (output module, digital) | 471 018 |
| MIQ/2-PR | Module IQ with PROFIBUS-DP connection (output module, digital) | 471 019 |
| MIQ/R6 | Module IQ / relay 6 with 6 relay outputs (output module, analog) | 480013 |
| MIQ/CR3 | Module IQ / current relay 3, with 3 power and 3 relay outputs output module (analog) | 480014 |
| MIQ/C6 | Module IQ / Current 6 with 6 power outputs (output module, analog) | 480015 |
| MIQ/IC2 | Module IQ / input Current 2 with 2 inputs for 0/4 - 20 mA signals (input module); every populated power input counts as an IQ sensor | 480016 |
